Bussmann / Eaton STN061050B351 TVS Diode

Bussmann / Eaton STN061050B351 TVS Diode offers a low clamping voltage, ultra-low capacitance, and a 5V operating voltage. This diode is an ESD suppressor, comes in a DFN0603-2L package size, and protects one bidirectional I/O line. The STN061050B351 has a UL 94V-0 flammability rating for the molding compound and meets IEC 61000-4-2 (ESD) specifications. Bussmann / Eaton STN061050B351 TVS Diode is suitable for USB ports, display ports, wireless communications, and digital visual interfaces (DVI).

Features

Protects one bidirectional I/O line
Low clamping voltage
Low operating voltage

Low leakage current
Ultra-low capacitance

Applications

USB ports
Display ports
Wireless communications

DVI
Cellular handsets and accessories

Specifications

DFN0603-2L package size
5V operating voltage
Moisture sensitivity level: 1
UL 94V-0 flammability rating for molding compound
-55°C to +85°C operating temperature range

19A peak pulse current rating
IEC 61000-4-2 (ESD)
- ±30kV (air)
- ±30kV (contact)

Bussmann / Eaton STN061050B351 TVS Diode

Features

Applications

Specifications

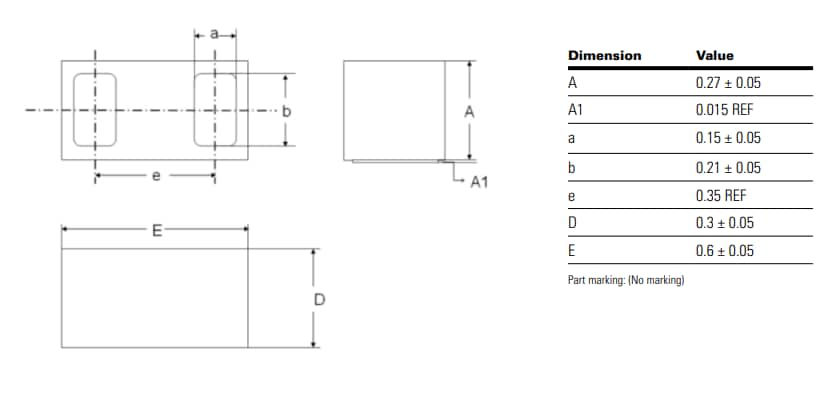

Mechanical Parameters
