Bulgin Buccaneer Data Connectors USB

Bulgin Buccaneer Data Connectors – USB feature USB version 2.0 and 3.0 performance with single- and double-ended cables. The connectors offer a shielded system, screw coupling, and a PCB-mounted panel connector. The USB 2.0 provides four contact interfaces and a high-speed bus connection of up to 480Mbps, while the USB 3.0 has nine contact interfaces with up to 5Gbps connection speeds. The Bulgin Buccaneer Data Connectors – USB have high-noise immunity with EMI protection, plug-and-play capability, and are suitable for PC and peripheral configuration.

Features

USB v2.0 and v3.0 performance
Shielded system
Single- and double-ended cables
Screw coupling
PCB-mounted panel connector
High-speed bus connection
Hot pluggable
USB 2.0 with four contact interface
USB 3.0 with nine contact interface

Alignment indicator reduces risk during mating
High noise immunity and EMI protection
Suitable for PC and peripheral configuration
Secure, proven locking system
Direct mounting, via adaptor leads
Plug-and-play capability

Specifications

USB 2.0
- 0°C to +70°C operating temperature
- Four electrical contacts
- 1A current rating
- 30V_AC voltage rating
- 30mΩ max contact resistance
- UL94V-0 flammability rating
- RoHS compliant

USB 3.0
- 0°C to +70°C operating temperature
- Nine electrical contacts
- 1A current rating
- 30V_AC voltage rating
- 30mΩ max contact resistance
- UL94V-0 flammability rating
- RoHS compliant

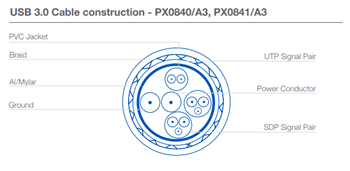

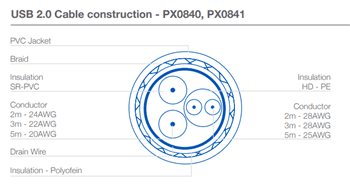

Cable Constructions

Chart - Bulgin Buccaneer Data Connectors USB
