Broadcom ASCB-JTC2 Tricolor PLCC-4 LED

Broadcom ASCB-JTC2 Tricolor PLCC-4 LED is a low-profile, high-brightness LED targeting indoor small pixel pitch displays. The ASCB-JTC2 LED features a black outer appearance with diffused epoxy to enhance display contrast, providing a suitable solution for high-resolution video displays. The short lead design of the ASCB-JTC2 enables an easy potting process. To facilitate easy pick and place assembly, the LEDs are packed in tape and reel form.

The Broadcom ASCB-JTC2 Tricolor PLCC-4 LED is offered in a 1.6mm x 1.5mm x 1.0mm package.

Features

Low-profile PLCC-4 package with full black body
Short leads for better potting process

Compatible with the reflow soldering process
RoHS6 compliant

Applications

Indoor full-color displays
Small pixel pitch signage

Specifications

Luminous intensity (Typical)
- Red: 55mcd
- Green: 175mcd
- Blue: 19mcd
Dominant wavelength (Typical)
- Red: 620nm
- Green: 529nm
- Blue: 466nm
Peak wavelength
- Red: 628nm
- Green: 521nm
- Blue: 462nm
105° viewing angle

100mA peak forward current
DC forward current
- Red: 20mA
- Green: 15mA
- Blue: 11mA
Power dissipation
- Red: 46mW
- Green: 46.5mW
- Blue: 34.1mW
+100°C LED junction temperature
-40°C to +85°C operating temperature range
1.6mm x 1.5mm x 1.0mm package

Application Notes

InGaN LEDs – ESD Safety Handling Fundamentals

Broadcom ASCB-JTC2 Tricolor PLCC-4 LED

Features

Applications

Specifications

Application Notes

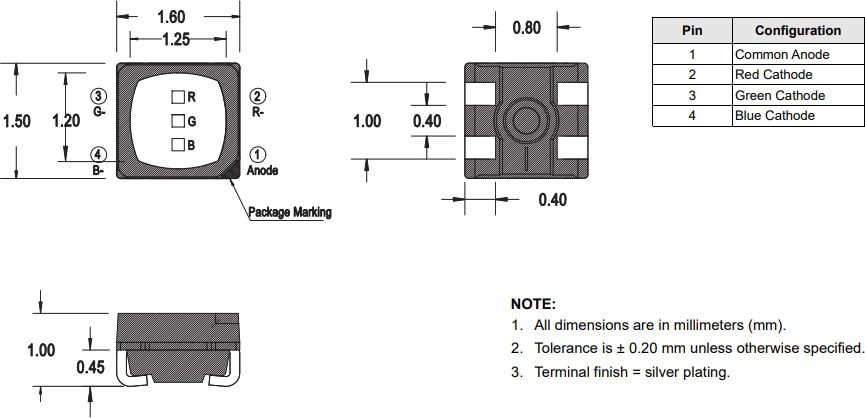

Package Outline
