Broadcom AFBR-S4N66P024M 2×1 NUV-MT Photomultiplier Array

Broadcom / Avago AFBR-S4N66P024M 2×1 NUV-MT Silicon Photomultiplier (SiPM) Array is intended for ultra-sensitive precision measurements of single photons. The AFBR-S4N66P024M provides two 6mm × 6mm SiPMs arranged in a 2×1 element array with a pitch of 7mm. Larger areas are covered with a SiPM-pitch of 7mm by tiling multiple AFBR-S4N66P024M arrays.

The array is ideal for the detection of low-level pulsed light sources, especially for the detection of Cherenkov or scintillation light from the most common organic (plastic) and inorganic scintillator materials (for example, LSO, LYSO, BGO, NaI, CsI, BaF, LaBr3). Additionally, the device is lead-free and compliant with RoHS.

Features

2×1 SiPM array
Array size 13.54mm × 6.54mm
High PDE of more than 65% at 420nm
Excellent SPTR and CRT
Excellent uniformity of breakdown voltage
Excellent uniformity of gain

Four-side tileable, with high fill factors
Cell pitch 40µm × 40µm²
Highly transparent epoxy protection layer
Operating temperature range from 0°C to +60°C
RoHS, CFM, and REACH compliant

Applications

X-ray and gamma-ray detection
Gamma-ray spectroscopy
Safety and security
Nuclear medicine
Positron emission tomography
Life sciences

Flow cytometry
Fluorescence – luminescence measurements
Time-correlated single-photon counting
High energy physics
Astrophysics

Broadcom AFBR-S4N66P024M 2×1 NUV-MT Photomultiplier Array

Features

Applications

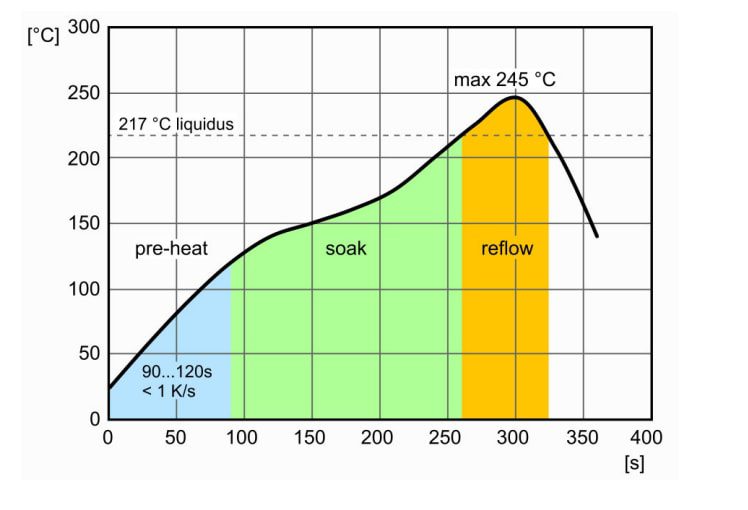

Reflow Soldering Diagram

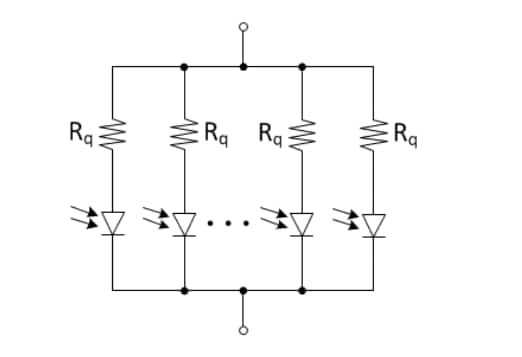

Block Diagram
