Broadcom ACPL-K70A/K73A High-Speed Optocouplers

Broadcom ACPL-K70A/K73A High-Speed Optocouplers are high gain series couplers that use LED and an integrated high gain photodetector. This provides an extremely high current transfer ratio between input and output. These optocouplers come with separate pins for the photodiode and output stage that result in LVTTL-compatible saturation voltages and high-speed operation. The V_CC and V_O terminals tied together to achieve conventional photodarlington operation. These ACPL-K70A/K73A optocouplers feature low input current, high current gain, low power consumption, and base access allows gain bandwidth adjustment.

The ACPL-K70A/K73A optocouplers are surface-mount devices that are packaged in an industry-standard stretched SOIC-8 footprint. This stretched SOIC-8 does not require through holes in a PCB. The ACPL-K70A/K73A high-speed optocouplers are ideal for use in LVTTL/LVCMOS or other low-power applications.

Features

Low power consumption
High current transfer ratio
Stretched SO-8 package

LVTTL/LVCMOS compatible output
Base access allows gain bandwidth adjustment

Safety

UL1577 recognized at 5000V_RMS for 1 minute
CSA approval
IEC 60747-5-5 approval for reinforced insulation

Applications

EIA RS-232C/low input current line receiver
Low power systems (ground isolation)

Line voltage status indicator
Low input power dissipation

Specifications

3.3V to 18V supply voltage range V_CC
0.04mA to 12mA forward input current range I_F(ON)
-40°C to +105°C operating temperature range

0.8V forward input voltage V_F(OFF)
25mA output current I_O(AVG)

Broadcom ACPL-K70A/K73A High-Speed Optocouplers

Features

Safety

Applications

Specifications

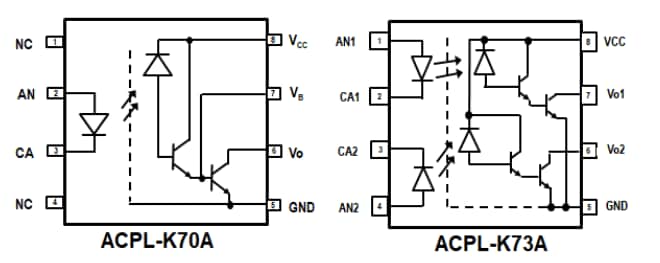

Functional Block Diagram

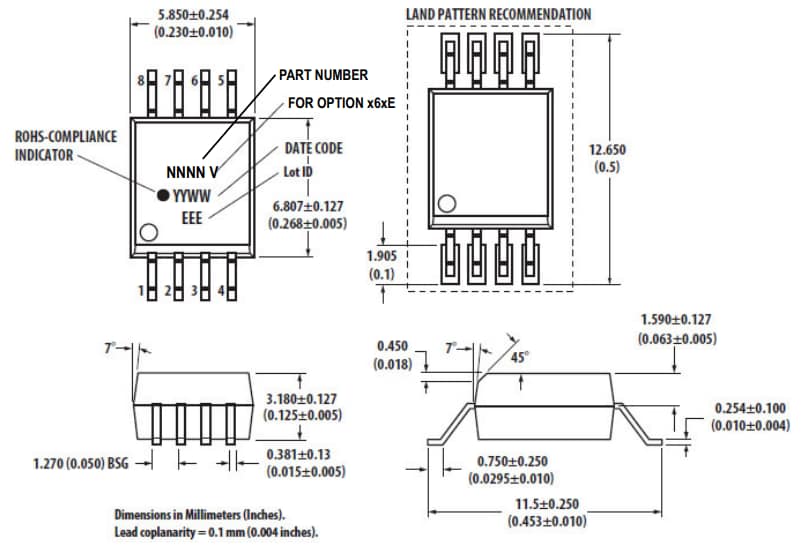

Package Outline Drawing
