Broadcom ACPL-351J 5A Gate Driver Optocouplers

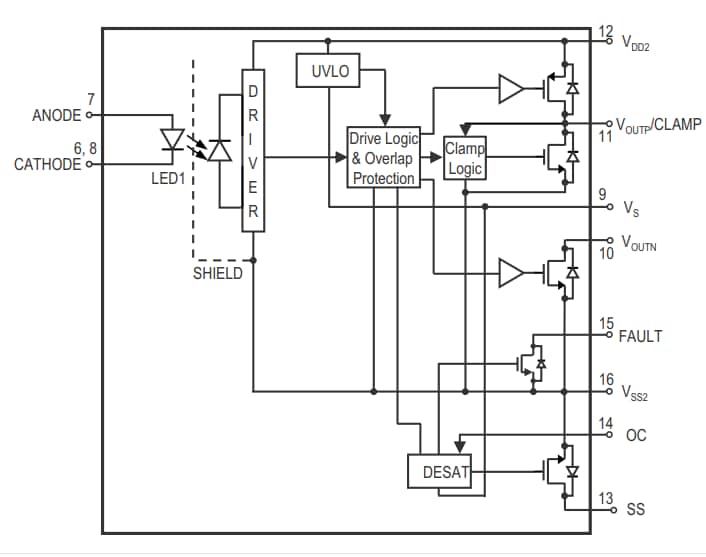

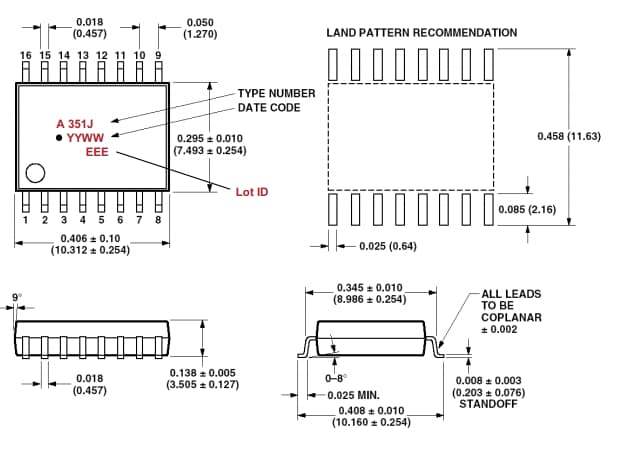

Broadcom ACPL-351J 5A Gate Driver Optocouplers with overcurrent sensing and FAULT signal exhibit high peak output current and wide operating voltage range. These optocouplers feature a fast propagation delay, excellent timing skew performance, and a dual output drive to control turning on and off time. The ACPL-350J optocouplers provide IGBT/MOSFET with overcurrent protection and FAULT signal for external isolated feedback. These gate driver optocouplers operate from -40°C to +105°C  temperature range and come in a compact, surface-mountable SO-16 package. The ACPL-350J optocouplers provide reinforced insulation certified for safety regulatory IEC/EN/DIN, UL, and CSA. Typical applications include industrial drives and inverters, renewable energy inverters, and switching power supplies.
