Bourns SRR1050HA Shielded Power Inductors

Bourns SRR1050HA Shielded Power Inductors are designed with a ferrite core/ferrite shield for low magnetic field radiation. These inductors are assembled with U-clip terminals for enhanced mounting strength. The SRR1050HA inductors are AEC-Q200 compliant and feature a broad operating temperature range of -55°C to 150°C. These shielded power inductors are RoHS-compliant and Halogen free. The SRR1050HA shielded power inductors are suitable for DC/DC converters and power supplies in consumer, industrial, and telecom applications.

Features

Shielded construction for low radiation
U-clip terminal for enhanced mounting strength
Wide operating temperature range

AEC-Q200 compliant
RoHS-compliant and Halogen free

Specifications

0.68µH to 470µH inductance range
0.6A to 9.5A heating current (I_rms)

0.7A to 13.5A saturation current (I_sat)
10mm x 10.2mm x 4.8mm dimensions

Applications

DC/DC converters
Power supplies in consumer, industrial, and telecom electronics

Bourns SRR1050HA Shielded Power Inductors

Features

Specifications

Applications

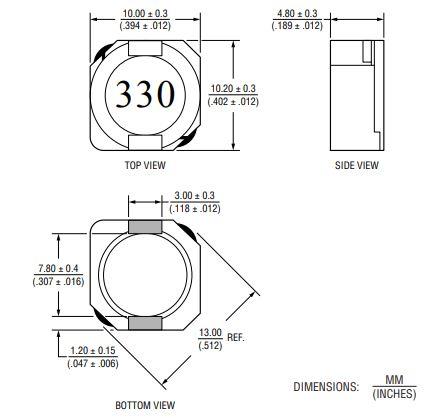

Dimensions
