Bourns SRP6530A Shielded Power Inductors

Bourns SRP6530A Shielded Power Inductors offer a 4A to 34A current range, 100nH to 10µH inductance range, and up to 200MHz frequency rating. These inductors are AEC-Q200 compliant and designed to meet the high current density and high-temperature requirements of various electronic applications. SRP6530A inductors feature shielded construction for low radiation and a metal alloy powder core. Bourns SRP6530A Shielded Power Inductors are ideal for DC/DC converters and power supplies in consumer, industrial, and telecom electronics applications.

Features

  • AEC-Q200 compliant
  • Shielded construction
  • Metal alloy powder core
  • High saturation current
  • Low buzz noise
  • RoHS compliant
  • Halogen free

Applications

  • DC/DC converters
  • Power Supplies
    • Consumer
    • Industrial
    • Telecom electronics

Specifications

  • 4A to 34A heating current range
  • 100nH to 10µH inductance range
  • Up to 200MHz frequency rating
  • 7A to 70A saturation current
  • -55°C to +155°C operating temperature range
  • 7.1mm x 6.6mm x 3mm dimensions

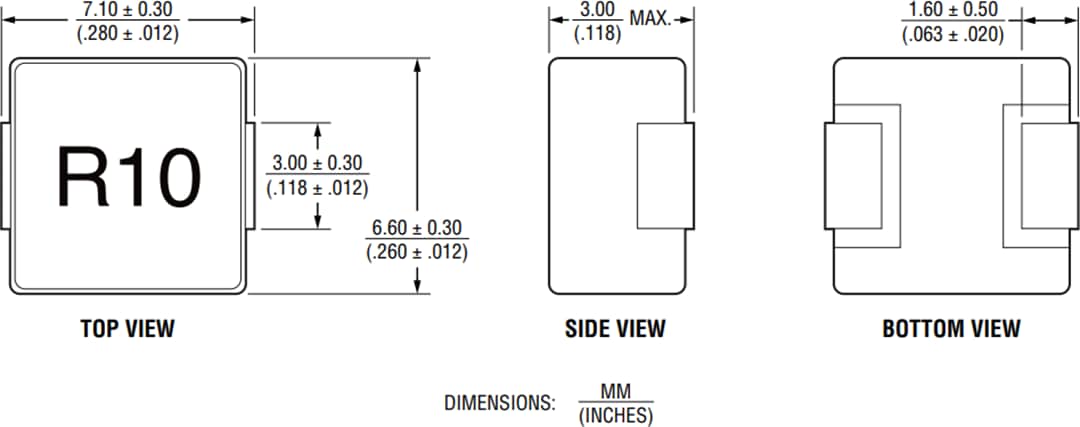

Package Outline

Mechanical Drawing - Bourns SRP6530A Shielded Power Inductors
