Bourns SRP2012TMA Shielded Power Inductors

Bourns SRP2012TMA Shielded Power Inductors feature low DCR, a compact size, and a shielded construction design. These inductors are AEC-Q200 compliant and have a metal alloy powder core for a high saturation current. SRP2012TMA inductors operate in a wide temperature range of -55°C to +150°C and offer a ±20% tolerance rating. Bourns SRP2012TMA Shielded Power Inductors are ideal for use in telecom electronics, wearable devices, smartphones, and LDC display applications.

Features

Compact size
Shielded construction

Flat wire
Low DCR

Applications

DC-DC Converters
- Consumer
- Industrial
- Telecom electronics
- Wearable devices
- HDDs/SSDs
- Smartphones
- LDC displays

Specifications

AEC-Q200 compliant
10mΩ to 105mΩ DCR range
±20% tolerance rating
7A Irms maximum current

8A Isat maximum current
-55°C to +150°C operating temperature range
RoHS compliant
Halogen free

Bourns SRP2012TMA Shielded Power Inductors

Features

Applications

Specifications

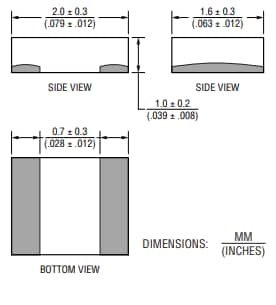

Dimensions
