Bourns SRP2010TMA Shielded Power Inductors

Bourns SRP2010TMA Shielded Power Inductors are AEC-Q200 compliant and offer a 7.7A maximum current rating. These inductors feature a compact size, low DCR, shielded construction for low radiation, and a metal alloy powder core for a high saturation current. SRP2010TMA inductors operate in a wide temperature range of -55°C to +150°C and have a flat wire design. Bourns SRP2010TMA Inductors are ideal for DC-DC converters in consumer, industrial, and telecom electronics.

Features

Compact size
Shielded construction for low radiation
Metal alloy powder core for high saturation current

Flat wire
Low DCR

Applications

DC-DC Converters
- Consumer
- Industrial
- Telecom electronics
- Wearable devices
- HDDs/SSDs
- Smartphones
- LDC displays

Specifications

AEC-Q200 compliant
6.5A Irms maximum current rating
±20% tolerance rating

7.7A Isat maximum current rating
-55°C to +150°C operating temperature range

Bourns SRP2010TMA Shielded Power Inductors

Features

Applications

Specifications

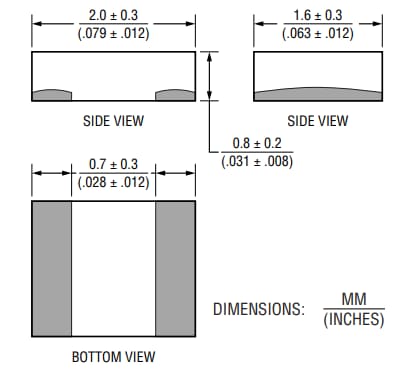

Dimensions
