Bourns SRP2010DPA High Current Shielded Power Inductors

Bourns SRP2010DPA High Current Shielded Power Inductors are AEC-Q200 compliant low-profile devices with a 1mm maximum height. The Bourns SRP2010DPA High Current Shielded Power Inductors feature a metal alloy powder core with 1.5A to 4.5A saturation current and shielded construction for low magnetic field radiation. The series operates over a -40°C to +125°C temperature range and is ideal for use in wearable devices, smartphones, LCD displays, and more.

Features

  • Shielded construction for low radiation
  • Metal alloy powder core for high saturation current
  • AEC-Q200 compliant
  • RoHS compliant and halogen-free

Applications

  • Wearable devices
  • Hard-disk drives
  • Solid-state drives
  • Smartphones
  • LCD displays

Specifications

  • 2mm x 1.6mm x 1mm dimensions
  • 0.47µH to 4.7µH inductance
  • 1.1A to 3.6A heating current
  • 1.5A to 4.5A saturation current
  • -40°C to +125°C operating temperature range

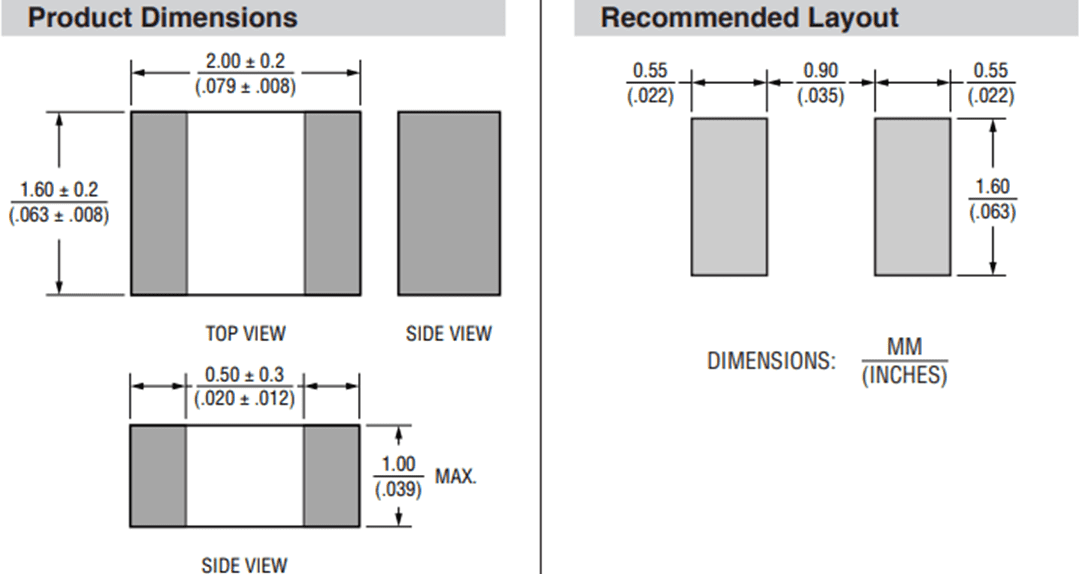

Package Outline

Mechanical Drawing - Bourns SRP2010DPA High Current Shielded Power Inductors
