Bourns SF-1206S-R Metal Foil SMD Fuses

Bourns SF-1206S-R Metal Foil SMD Fuses are available in small chip sizes with a high current rating and feature a metal foil chip design. The SF-1206S-R metal Foil SMD fuses feature overcurrent protection and is RoHS-compliant and halogen-free. These metal foil SMD fuses operate at -55°C to 125°C temperature range, 40% to 75% humidity, and a 10A to 20A rated current range. The SF-1206S-R SMD fuses are used in data centers, industrial, medical (low to medium risk), telecom, and Battery Management Systems (BMS).

Features

  • Metal foil chip design for overcurrent protection
  • EIA 1206 (3216 metric) footprint
  • Small chip size with a high current rating of up to 20A
  • RoHS-compliant and halogen-free

Specifications

  • -55°C to 125°C operating temperature range
  • 5°C to 35°C storage temperature range
  • 40% to 75% humidity range
  • 10A to 20A rated current range
  • 32VDC rated voltage
  • Level-1 moisture sensitivity

Applications

  • Data centers
  • Industrial
  • Medical (low to medium risk)
  • Telecom
  • Battery Management Systems (BMS)

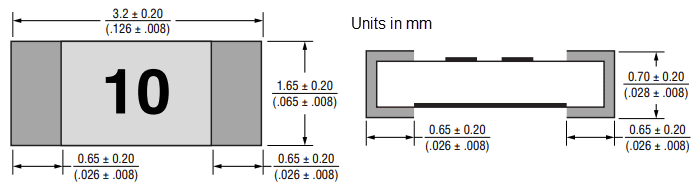

Dimension Diagram

Mechanical Drawing - Bourns SF-1206S-R Metal Foil SMD Fuses
