Bourns PLN Planar Transformers

Bourns PLN Planar Transformers are designed for Power over Ethernet (PoE) applications from 48W to 70W that require a low profile and high power density. Bourns PLN Planar Transformers are forward converter transformers operating at a switching frequency of 250kHz with low leakage inductance from 0.29μH to 0.6μH. The available output voltages are 5V and 12V with an output current from 4A to 14A, which can withstand hi-pot at 1750V_DC.

These RoHS-compliant surface-mount transformers operate over a -40°C to +125°C temperature range. The series is suitable for various applications, including forward transformers for PoE applications, industrial power systems, switched-mode power supplies (SMPS), LED lighting, and battery management systems (BMS).

Features

DC-DC transformers for a 48W to 70W forward converter
0.29μH to 0.6μH low leakage inductance
Low height profile component

Surface mount
-40°C to +125°C operating temperature range
RoHS compliant

Applications

PoE applications
Industrial power systems
SMPS

LED lighting
BMS

Specifications

33V_DC to 57V_DC transformer input voltage
250kHz switching frequency

81.6Vµs volt-time
Moisture Sensitivity Level 1

Bourns PLN Planar Transformers

Features

Applications

Specifications

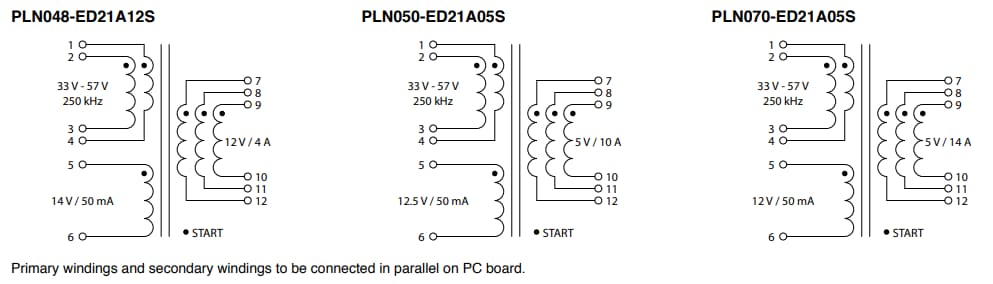

Schematic
