Bourns PER21 Long-Life Incremental Ring Encoder

Bourns PER21 Long-Life Incremental Ring Encoder offers a 21mm package diameter with 10mA at 5V_DC contact rating and 2-bit quadrature code output. The PER21 provides haptic detent feedback, a through-hole mounting style, and a high-class rotational feel. Bourns PER21 Long-Life Incremental Ring Encoder operates in a temperature range of -10°C to +60°C. Typical applications include professional audio equipment, low- to medium-risk medical and diagnostic equipment, consumer white goods, and industrial automation controls.

Features

Low-profile incremental encoder
High-class rotational feel
Through-hole mounting style

Haptic detent feedback
RoHS compliant

Applications

Professional audio equipment
Professional lighting consoles
Consumer white goods
Low- to medium-risk medical and diagnostic equipment

Test and measurement equipment
Communications equipment
Laboratory equipment
Industrial automation controls

Specifications

50,000 rotational cycle rating
60RPM maximum rotational speed
10mA at 5V_DC contact rating

2-bit quadrature code output
-10°C to +60°C operating temperature range
-40°C to +85°C storage temperature range

Bourns PER21 Long-Life Incremental Ring Encoder

Features

Applications

Specifications

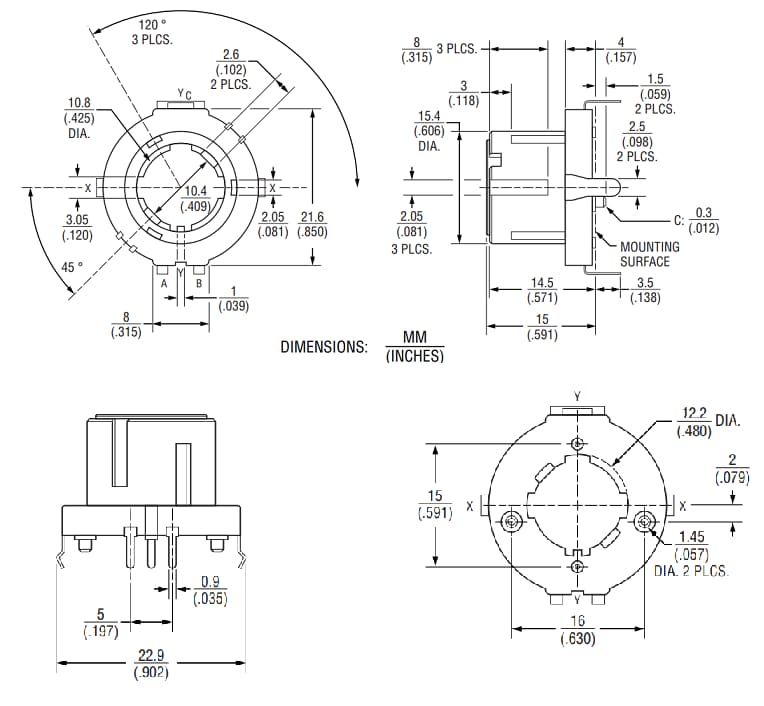

Mechanical Drawing
