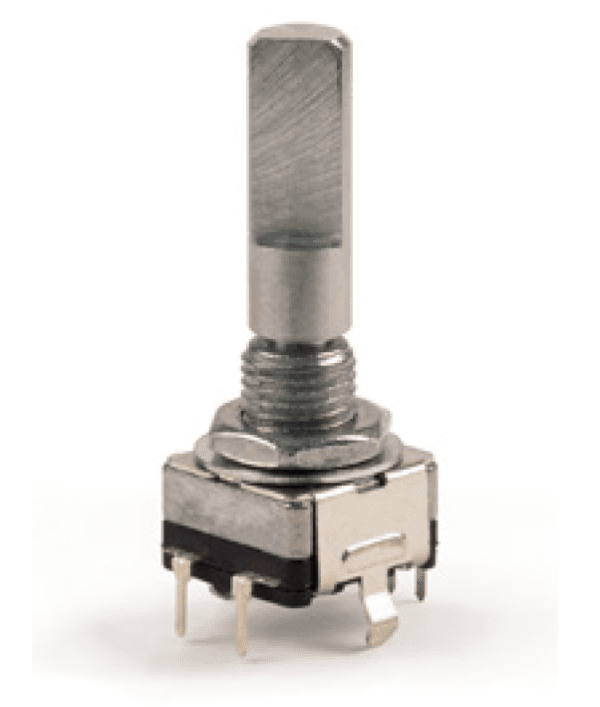

Bourns PEC11H 11mm Rotary Encoders with High Detent Force

Bourns PEC11H 11mm Rotary Encoders with High Detent Force feature a ball/spring detent design for a positive but smooth tactile detent feel. Bourns PEC11H 11mm Rotary Encoders offer quadrature output, 100,000 rotational cycle rating, and a -20°C to +70°C operating temperature range. PEC11H is IP40 dust seal rated and ideal for professional audio and lighting applications.

Features

Quadrature output
100,000 rotational cycle rating
-20°C to +70°C operating temperature range
Momentary push switch option

Various resolutions
Various knurled and flatted shaft lengths
IP40 dust seal rating
RoHS compliant

Applications

Professional audio equipment
Professional lighting consoles
Consumer white goods
Low- and medium-risk medical and diagnostic equipment

Test and measurement equipment
Communications equipment
Laboratory equipment
Industrial automation controls

Circuit Diagrams

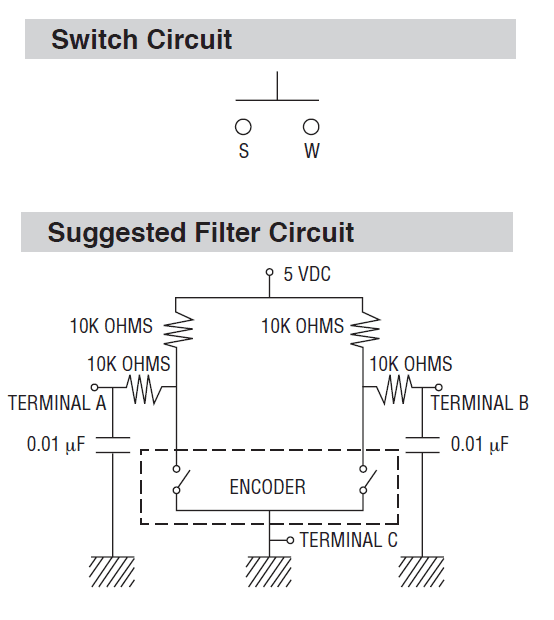

Application Circuit Diagram - Bourns PEC11H 11mm Rotary Encoders with High Detent Force
