Bourns GDT212E/GDT216E/GDT220E/GDT225E High Energy GDTs

Bourns GDT212E / GDT216E / GDT220E / GDT225E High Energy Gas Discharge Tube (GDT) Arrestors are UL recognized and are tested per the ITU-T K.12 method. These GDTs provide a high surge capability rated on an 8/20μs waveform with a wide range of DC breakdown voltages, from 150V to 1000V. The low-profile, surface-mount package offers a volume- and space-saving solution for high-density and space-restricted PCB applications. The series is available in a variety of lead shapes to suit various configuration requirements. Other features include low capacitance and insertion loss, fast response time, and RoHS compliance. Bourns GDT212E / GDT216E / GDT220E / GDT225E are ideal for applications such as surge protective devices (SPDs), power systems, and Industrial equipment.

Features

Fast response time
Wide temperature range
High surge current rating
Low capacitance and insertion loss

Stable performance throughout life
Small surface-mount package
RoHS compliant

Applications

SPDs
Power systems
Industrial equipment

Specifications

150V to 1000V DC breakdown voltage range
1GΩ minimum insulation resistance

<100ns breakdown time
-55°C to +105°C operating temperature range

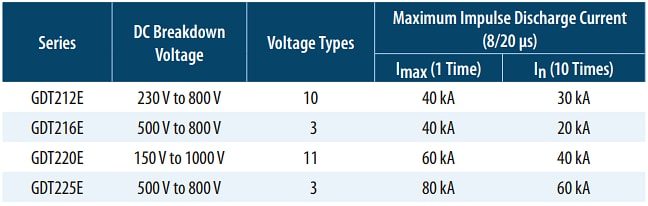

Series Comparison Chart

Chart - Bourns GDT212E/GDT216E/GDT220E/GDT225E High Energy GDTs

Datasheets

GDT212E
GDT216E

GDT220E
GDT225E
