Bourns EV Series EdgMOV™ High Surge Disc Varistors

Bourns EV Series EdgMOV™ High Surge Disc Varistors deliver superior nominal and surge current capabilities in reduced case sizes. The series is available in 7mm, 10mm, 14mm, and 20mm model sizes with nominal surge ratings of 1.5kA, 3kA, 5kA, and 8kA, respectively. The AC operating voltage ranges from 150V to 550V, while the DC operating voltage ranges from 200V to 745V. Additional features include increased protection, RoHS compliance, and three lead style options. Bourns EV Series EdgMOV™ High Surge Disc Varistors can replace standard conventional MOV devices with a smaller varistor. Typical applications include white goods, smart meters, LED lighting, fire alarm systems, power supplies, and motor drives.

Features

Extra high surge capability in reduced case size

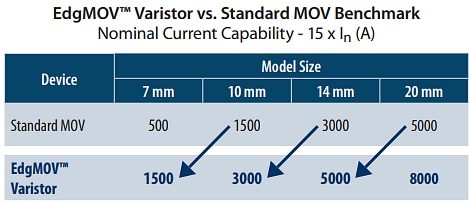

Enables replacement of standard conventional MOV devices with smaller form factor
Increased level of protection

4 model sizes available
3 lead styles available
Broad range of current and energy handling capabilities
RoHS compliant

Applications

White goods
Smart meters
LED lighting

Fire alarm systems
Power supplies
Motor drives

Specifications

Package sizes and nominal surge ratings
- 7mm model size: 1.5kA
- 10mm model size: 3kA
- 14mm model size: 5kA
- 20mm model size: 8kA
150V_RMS to 550V_RMS AC voltage range

200V_DC to 745V_DC operating voltage range
<+0.05%/°C threshold voltage temperature coefficient
>1GΩ insulation resistance
>2.5kV isolation voltage capability
<25ns response time
-40°C to +105°C operating temperature range
