Bourns BVR Multilayered Varistors

Bourns BVR Multilayered Varistors protect sensitive electronic devices from high voltage surges in low voltage areas. The varistors feature a high transient current absorption capability and quick response times. Bourns BVR Multilayered Varistors provide a 5.5V_DC to 18V_DC working voltage range and an improved energy volume distribution. The varistors are RoHS compliant and ideal for power supplies, white goods, and entertainment electronic applications.

Features

Meets IEC 61000-4-5 standard
Compact package size
Quick response time

High transient current capability
RoHS compliant

Applications

Power supplies
Entertainment electronics
White goods

Specifications

BVR0805
- 4V_rms to 14V_rms at <10μA
- 5.5V_DC to 18V_DC at <10μA
- 80A to 120A I_max at 8/20μs
- Lead-free
- -40°C to +125°C operating and storage temperature range
BVR1206
- 4V_rms to 14V_rms at <10μA
- 5.5V_DC to 16V_DC at <10μA
- 200A I_max at 8/20μs
- Lead-free
- -40°C to +125°C operating and storage temperature range

BVR1210
- 4V_rms to 14V_rms at <10μA
- 5.5V_DC to 18V_DC at <10μA
- 400A to 500A I_max at 8/20μs
- Lead exemption
- -40°C to +125°C operating and storage temperature range
BVR1812
- 4V_rms to 10V_rms at <10μA
- 5.5V_DC to 14V_DC at <10μA
- 800A I_max at 8/20μs
- Lead exemption
- -40°C to +125°C operating and storage temperature range

Bourns BVR Multilayered Varistors

Features

Applications

Specifications

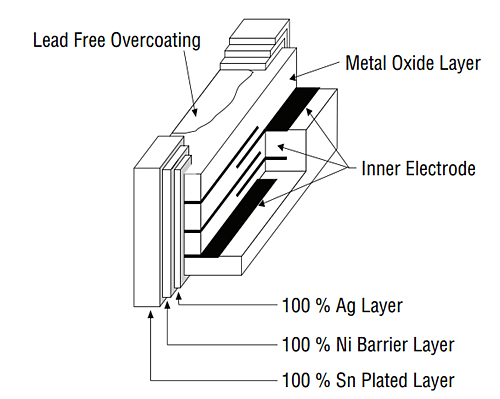

Varistor Construction
