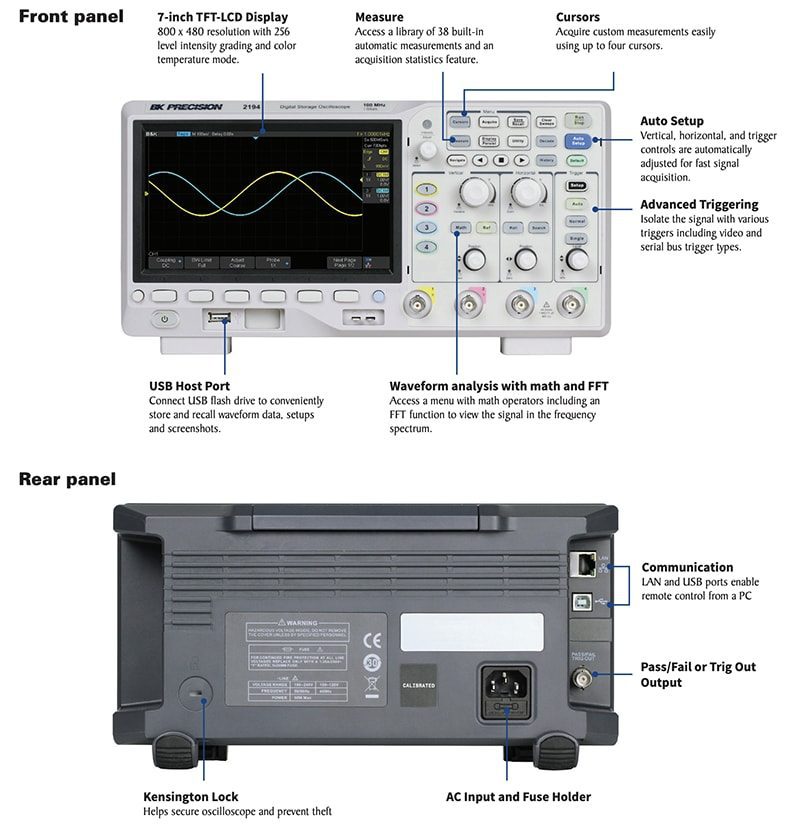

B&K Precision Model 2194 4-Channel Digital Storage Oscilloscope provides 100MHz of bandwidth, a maximum sample rate of 1GSa/s, and a maximum memory depth of 14Mpts. Equipped with a 7″ LCD display and a waveform update rate of 100,000 waveforms per second, this device can capture infrequent glitches with excellent signal fidelity. With free PC software for remote connectivity, users can increase productivity through LAN or USBTMC-compliant device ports. All the oscilloscope functions are accessible without the need for programming. These functions conveniently capture, save, and analyze measurement results.
Trigger modes include serial bus triggering with decoding support for I2C, SPI, UART, CAN, and LIN protocols. In applications where signals are transmitted over long periods of time, segmented acquisition mode and history can extend waveform recording up to 80,000 segments. Collect data using automatic measurements for 38 different parameters, including statistical analysis. Display signals in the frequency domain using the FFT math operation with a maximum memory depth of 128kpts. Rich in features for its class, 2194 is the ideal solution for educational settings and hobbyists.
