B&K Precision 5335C Single-Phase AC-DC Power Meters

B&K Precision 5335C Single-Phase AC-DC Power Meters measure and analyze power consumption and power quality parameters quickly and accurately. The 5335C supports power measurements up to 600V_RMS and 20A_RMS with a bandwidth up to 100kHz. Feature-rich measurement functions include all AC and DC parameters (power, current, voltage, power factor, frequency, and phase.) A powerful integration function performs harmonic measurements to the 50th order and an oscilloscope mode for viewing voltage and current reading in the time domain. Twelve real-time parameters can be measured and displayed simultaneously in user-customizable views.

Features

600V_RMS (Cat II) and 20A_RMS direct input ranges
DC frequency range from 0.5Hz to 100kHz
0.1% basic accuracy for voltage and current measurements
4.3″ color LCD (TFT)
Simultaneously measure and display up to 12 measurement parameters
Capture inrush current and voltage surge with the peak function
Integration function with automatic range switching
Harmonic measurements to the 50th order

Ability to measure electrical energy which is produced or consumed
Pre-compliance testing according to IEC/EN 62000-3-2 / 4-7
Standard USB (USBTMC compliant), RS232, and LAN interfaces
Line and frequency filter capability for reducing unwanted signal noise
Optional universal breakout box to simplify the connection between the power meter and DUT

Applications

Measure power
Electrical energy bought/sold back to the power grid
Inverters
Motor harmonics

Un-interruptible power supplies
Appliances
Consumer electronics

Specifications

500Hz low-pass frequency filter
600V_RMS maximum common-mode input voltage
2MΩ voltage input impedance +13pF in parallel
Maximum input voltage
- 1.5kV-peak or 1kV-RMS continuous (whichever is less)
- 2kV-peak or 1.5kV-RMS transient (whichever is less)
Temperature ranges
- +5°C to +40°C operating
- -20°C to +50°C storage
20% to 80% relative humidity, non-condensing

100V_AC to 240V_AC power, 50/60Hz
50V_AC maximum power consumption
Oscilloscope
- 2-channel, voltage and current measurement
- 10kHz bandwidth (-3dB)
- 100kS/s sample rate
- 1800V maximum input voltage
- 60A maximum input current
214.5mm x 88.2mm x 354.6mm in dimension (WxHxD)
3-year warranty

B&K Precision 5335C Single-Phase AC-DC Power Meters

Features

Applications

Specifications

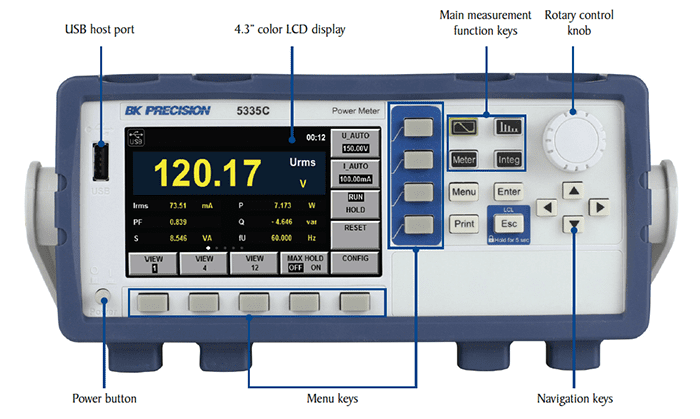

Front Panel

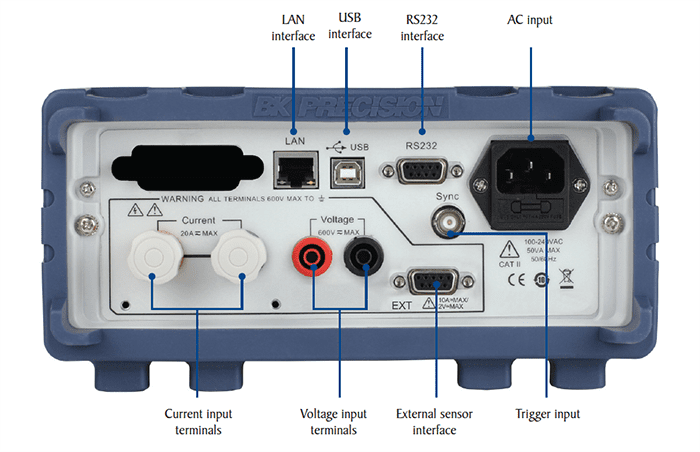

Rear Panel
