B&K Precision 2560B Mixed Signal Oscilloscopes

B&K Precision 2560B Digital Storage and Mixed Signal Oscilloscopes are advanced 4-channel analog oscilloscopes with an integrated waveform generator. These oscilloscopes feature a 10.1″ capacitive touchscreen, USB and ethernet interfaces, and a 16-channel digital port for use as a logic analyzer. B&K Precision 2560B Digital Storage and Mixed Signal Oscilloscopes also feature a bandwidth up to 350MHz, a 2GSa/s sample rate, and a 90,000 frame maximum history.

Features

4 analog channels
10.1″ capacitive touchscreen
Advance triggers with trigger zone support
Built-in 50MHz arbitrary waveform generator

LAN and USB ports
External triggers
16 channel digital port

Specifications

Bandwidth up to 350MHz
2GSa/s maximum sampling rate

90,000 frame maximum history and sequence mode
10-bit mode for improved vertical resolution

B&K Precision 2560B Mixed Signal Oscilloscopes

Features

Specifications

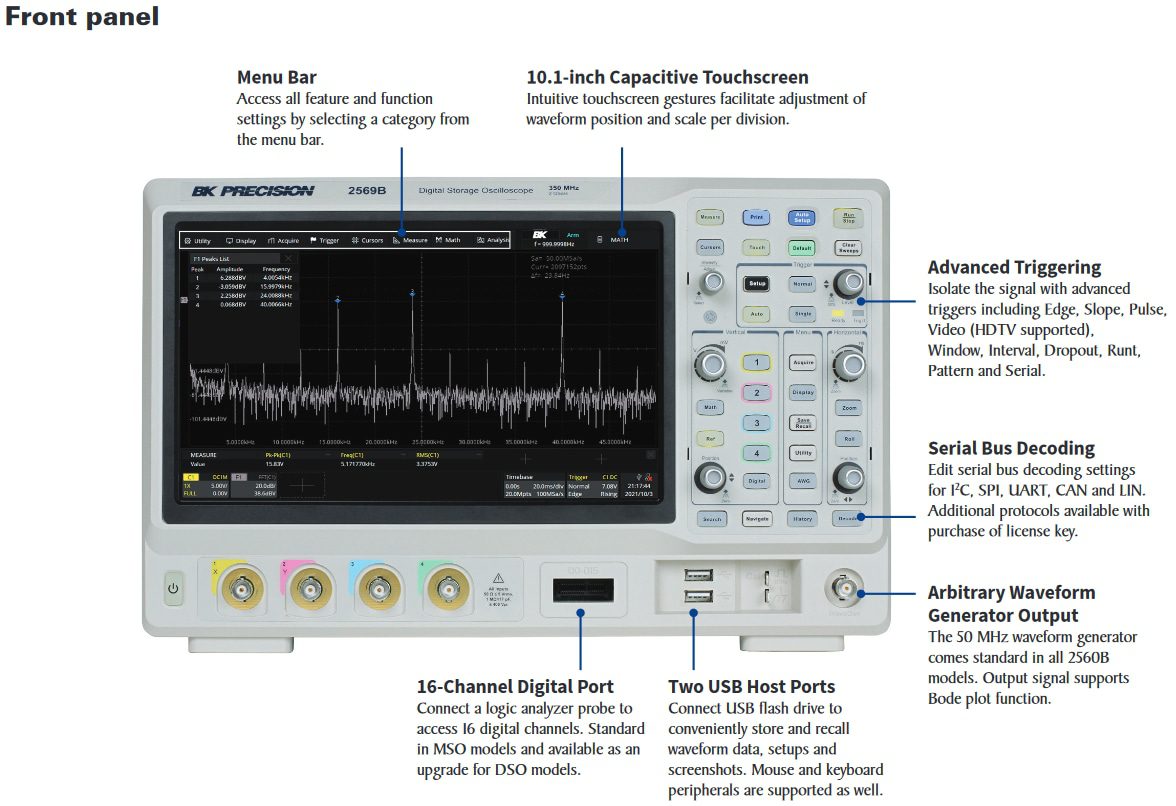

Front Panel

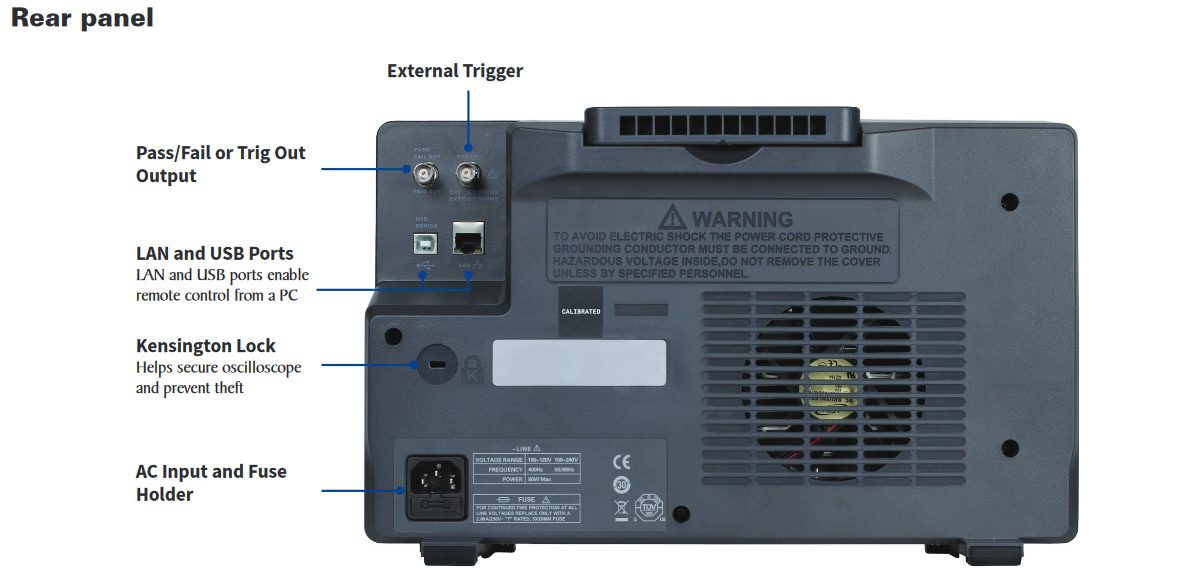

Rear Panel
