BIVAR Wireless Temperature & Humidity Sensor (BWTHS)

BIVAR Wireless Temperature and Humidity Sensor (BWTHS) monitors the temperature and relative humidity of the air within a given environment, room, or enclosure. This monitoring is available through any iOS or Android handheld device, tablet, or computer by downloading and installing the free Bivar smart app. The BWTHS sensor battery life is dependent on reporting frequency and other variable factors.

This sensor features industrial/scientific-grade sensors, LED light with real-time status, and AES-128 encryption with secure wireless and cloud communication. The BWTHS sensor operates from -40°C to 85°C temperature range and is available in 70mm x 51mm x 29mm dimensions. The Bivar Wireless Temperature and Humidity Sensor (BWTSH) must connect with a Bivar Wireless Gateway Communication Center (BWGCC) to function.

Features

Industrial/scientific grade sensor
Temperature monitoring within 18°C (64°F) and 27°C (80°F)
Humidity monitoring of Relative Humidity (RH) within 40% and 60%
±0.2°C temperature measurement accuracy
±5% RH relative humidity measurement accuracy
Actual range may vary depending on the environment

Battery life is dependent on reporting frequency and other variable factors
LED light with real-time status
iOS or Android app for active monitoring of status and events
AES-128 encryption with secure wireless and cloud communication
Easy installation with provided hardware

Specifications

V2.0.0 hardware version
915MHz communication frequency
12dbm @10kb RF rated output power
3db antenna frequency

3µA static power
40mA maximum working current
-40°C to 85°C operating temperature range
70mm x 51mm x 29mm dimensions

Kit Contents

BWTSH wireless sensor
Battery included and installed

Bivar Android and IOS app setup instructions

BIVAR Wireless Temperature & Humidity Sensor (BWTHS)

Features

Specifications

Kit Contents

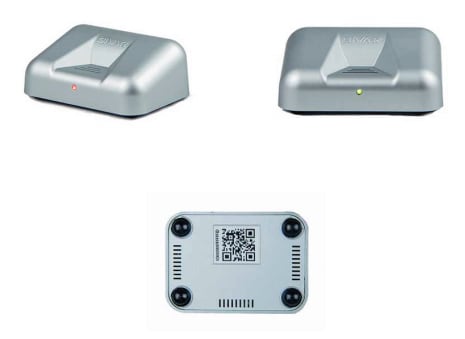

Product View
