BittWare IA-420f Agilex™ FPGA Cards

BittWare IA-420f Agilex™ FPGA Cards with PCIe Gen4 x16 is an Intel^® Agilex-based FPGA card designed to deliver next-generation performance for data center, networking, and edge computing workloads. The IA-420f NIC-sized card offers a balance of I/O and memory using the Agilex chip’s unique tiling architecture with a QSFP-DD (1x 200G), DDR4 SDRAM, PCIe Gen4 x16, and a GPIO port for diverse applications.

The BittWare IA-420f Agilex FPGA Cards enable an abstracted development flow for dramatically simplified code reuse across multiple architectures.

Features

FPGA
- Intel Agilex AGF014
- Core speed grade-2
- I/O speed grade-2
2Gbit Flash memory for booting FPGA
2x banks onboard DDR4, up to 8GB each
x16 Gen4 interface direct to FPGA, connected to PCIe hard IP
QSFP-DD cages
- QSFP-DD cage on the front panel connected directly to FPGA via eight transceivers
- User programmable low jitter clocking supporting 10/25/40/100GbE
- Jitter cleaner for network recovered clocking
4x GPIO expansion connector
External clocking: 1 PPS and 10MHz ref clk front panel inputs (optional)
USB access to BMC, USB-JTAG, USB-UART
Electrical
- Onboard power derived from PCIe slot
- Power dissipation is application-dependent
- 75W maximum power consumption

Board management controller
- Voltage, current, and temperature monitoring
- Power sequencing and reset
- Field upgrades
- FPGA configuration and control
- Clock configuration
- Low bandwidth BMC-FPGA comms with SPI link
- USB 2.0
- PLDM support
- Voltage overrides
Single-slot passive heatsink
Operating temperature of 5°C to 35°C
Low profile (half-height, half-length) PCIe slot card
167.7mm x 68.9mm
RoHS compliant
CE, FCC, and ICES approvals

BittWare IA-420f Agilex™ FPGA Cards

Features

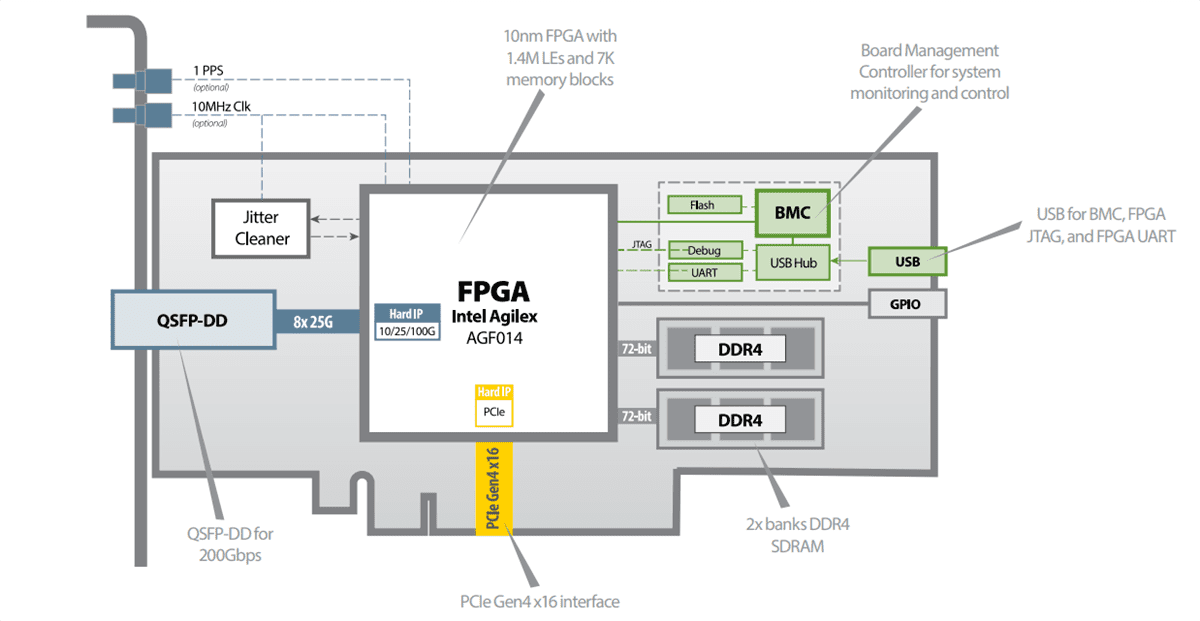

Block Diagram
