BittWare 510T PCIe FPGA Board

BittWare 510T PCIe FPGA Board is a standard-height, dual-slot PCIe board designed to implement fast and efficient performance per watt. The 510T PCIe FPGA Board offers a ground-breaking single-precision floating-point performance of up to 1.5TFLOPS per device. The OpenCL-programmable 510T provides two Intel Arria 10 FPGAs, combined with four banks of DDR4 external memory per FPGA.

Features

Dual Intel Arria 10 GX 1150
Up to 32Gbytes DDR4
OpenCL support
Abstraction for faster development
Push-button flow for FPGA executable, driver, and API
Add optimized HDL IP cores to OpenCL designs as libraries

Traditional VHDL/Verilog support for hardware-orientated customers
Hand-code for ultimate performance
High-Level Synthesis (HLS) available for rapid development
FPGA card designed to support standard Intel IP cores for Stratix 10

Applications

Compute, network and storage
Finance and risk analysis
Datacenter
HPC Communications

Industrial, broadcast
Medical
Automotive

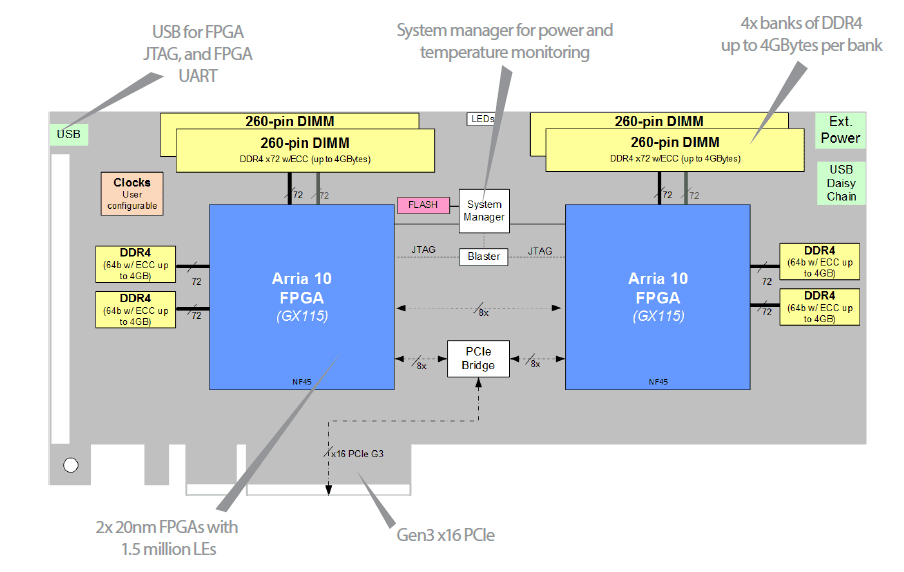

Block Diagram

Block Diagram - BittWare 510T PCIe FPGA Board
