Bel Fuse 0ACA Series Surface Mount Fuses

Bel Fuse 0ACA Series Surface Mount Fuses offer internal reliability and are applicable for low-duty applications. This power battery packs protection series feature a surface-mount design to save space. These fuses include a ceramic square body with a silver-plated end cap. The 0ACA series surface mount fuses are fully compatible with lead-free solder and high-temperature profiles associated with a lead-free assembly. These fuses are operated and stored at the -55°C to 125°C temperature range. Typical applications include E-bike, E-robot sweeper, E-motor, and power tools.

Features

Surface mount design to save space and 2410 SMD
Ceramic square body with silver-plated end cap
Compatible with 260°C and IR Pb-free solder process
Tape and reel for auto-insert SMD process

Designed to UL248-1
Fully compliant with EU Directive 2011/65/EU and amending directive 2015/863
Fully compatible with lead-free solder and high-temperature profile associated with lead-free assembly
Halogen-free device

Specifications

-55°C to 125°C operating and storage temperature range
6.1mm x 2.57mm x 2.57mm dimension
0ACA-9200-TE:
- 2.3mΩ resistance
- 20A current ratings
- 60mV voltage drop
0ACA-9300-TE:
- 1.2mΩ resistance
- 30A current ratings
- 50mV voltage drop

0ACA-9250-TE:
- 1.7mΩ resistance
- 25A current ratings
- 55mV voltage drop
0ACA-9400-TE:
- 900μΩ resistance
- 40A current ratings
- 50mV voltage drop

Applications

E-bike
E-robot sweeper

E-motor
Power tools

Bel Fuse 0ACA Series Surface Mount Fuses

Features

Specifications

Applications

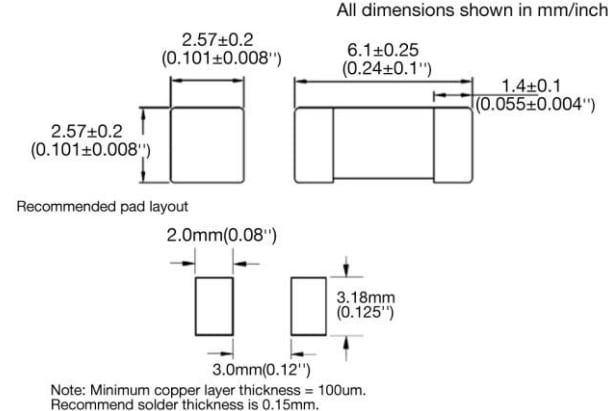

Mechanical Dimensions
