BeagleBoard BeagleBone® Black

BeagleBoard BeagleBone® Black is a low-cost, community-supported development platform for developers and hobbyists, featuring the Sitara AM3358BZCZ100 ARM Cortex-A8 32-Bit RISC microprocessor from Texas Instruments. It is similar to the BeagleBone but with some previous features removed to make way for the excellent new features.

The Beagleboard.org® platform has a proven track record of facilitating innovation from concept to market and BeagleBone Black’s enhanced feature set enables developers to turn ideas into prototypes more easily than ever. Whether operating standalone or in conjunction with another computer, this new BeagleBone will provide developers easy access to industry-standard interfaces and a well-developed ecosystem of software and tools. The original BeagleBone’s cape plug-in boards are also compatible with the BeagleBone Black, making easy integration with previous projects yet another advantage.

Features

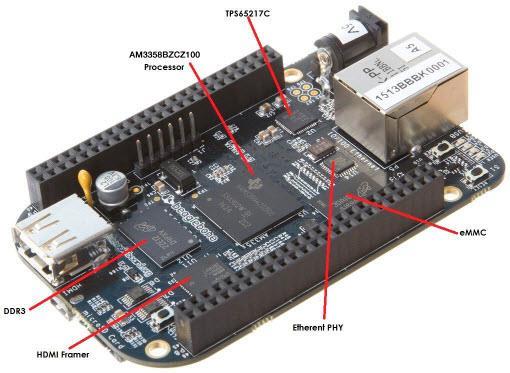

Sitara AM3358BZCZ100 ARM Cortex-A8 32-Bit RISC microprocessor, up to 1GHz
Onboard HDMI to connect directly to TVs and monitors
More and faster memory now with 512MB DDR3L 400MHz SDRAM, 4GB eMMC memory
Support for existing cape plug-in boards
TPS65217C PMIC regulator and one additional LDO

Onboard storage frees up the microSD card slot for greater expansion
Debug support: Optional onboard 20-pin CTI JTAG
HS USB 2.0 client and host ports
Serial port: UART0 access via 6-pin 3.3V TTL header
10/100 RJ45 Ethernet
Linux Debian Distribution flashed to the eMMC

BeagleBoard BeagleBone® Black

Features

Overview

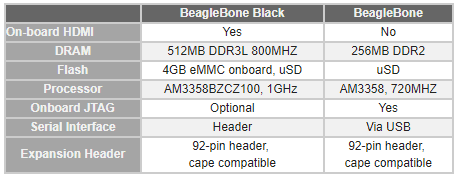

Comparison
