Banner Engineering Snap Signal DXMR90-X1 Controller

Banner Engineering Snap Signal DXMR90-X1 Controller consolidates, processes, and distributes data using industrial or web services protocols. This configurable controller works with various Modbus devices and quickly deploys Modbus secondary device data to EtherNet/IP™, Modbus TCP, or PROFINET® networks. The DXMR90-X1 features compact housing that saves space and weight compared to traditional “block” style form factors. Banner Engineering Snap Signal DXMR90-X1 Controller contains four individual Modbus primary ports, allowing concurrent communication for up to four independent networks.

Features

Works with a variety of Modbus devices

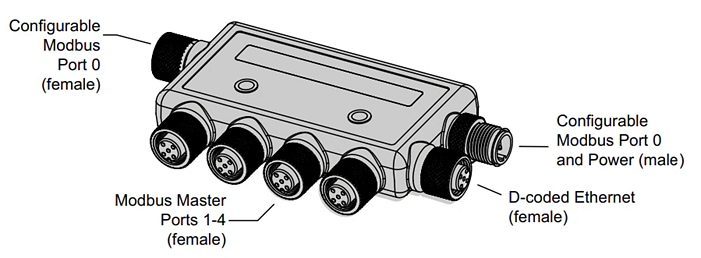

- Four independent Modbus primary ports per converter
- Connects up to four Modbus slave devices
Local control or connectivity
- Automation protocols
  - EtherNet/IP
  - PROFINET
  - Modbus TCP
  - Modbus TRU
- Internal protocols
  - RESTful API
  - MQTT

Logic processing and problem-solving capable of deploying solutions to process and control data from multiple devices
Compact housing saves space and weight compared to traditional “block” style form factors
IP67 housing simplifies installation in any location by eliminating need for control cabinet
Consolidate cable runs to minimize cabling and associated weight, especially in weight-critical applications such as robotics
