Banner Engineering Snap Signal DXMR90-4K Series IO-Link Controller

Banner Engineering Snap Signal DXMR90-4K Series IO-Link Controller offers a 12V_DC to 30V_DC supply voltage range, 5mA typical input current rating, and -40°C to +70°C temperature range. This controller consolidates data from multiple sources to provide local data processing and accessibility for host systems as a platform for the Industrial Internet of Things (IIoT). The DXMR90-4K features four IO-Link ports, allowing for simultaneous communication for up to four IO-Link devices. The internal logic controller collects data to facilitate edge processing, protocol conversion to Modbus/TCP, industrial Ethernet, and pushing information to web servers. Banner Engineering Snap Signal DXMR90-4K Series IO-Link Controller has IP67-rated housing that simplifies installation in any location by eliminating the need for a control cabinet.

Features

Local control or connectivity with automation protocols, including EtherNet/IP, PROFINET, Modbus/TCP, and Modbus RTU
Logic processing and problem-solving capable of deploying solutions to process and control data from multiple devices
Compact housing saves space and weight compared to traditional “block” style form factors

IP67 housing simplifies installation in any location by eliminating need for control cabinet
Consolidate cable runs to minimize cabling and associated weight, especially in weight-critical applications such as robotics
Flexible and customizable – Expanded internal logic controller with action rules and ScriptBasic programming

Banner Engineering Snap Signal DXMR90-4K Series IO-Link Controller

Features

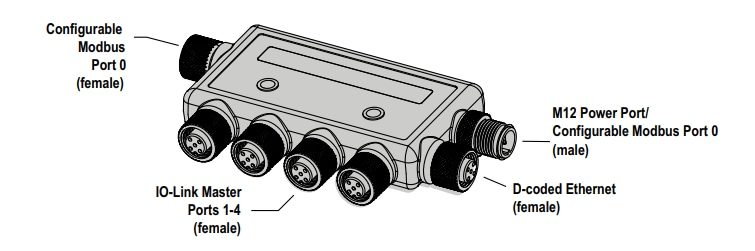

Controller Ports
