Banner Engineering S15J In-Line Fuses

Banner Engineering S15J In-Line Fuses offer a 12V_DC to 30V_DC voltage range and an operating temperature range of -40°C to +55°C. These fuses protect devices from overcurrent, and the rugged over-molded design meets IP65, IP67, and IP68 standards. The featured M12 connection allows for easy installation in the circuit, and the LEDs provide fuse status to indicate a healthy or blown state. Banner Engineering S15J In-Line Fuses offer an alternative solution to products that require a Class 2 power supply.

Features

Plug-and-play design
Compact design ideal for small spaces

LEDs indicate healthy or blown fuse status
Easy installation with M12 connection

Applications

Automotive
Extreme temperatures
Dirty or wet conditions

Specifications

2A to 3A current range
Meets IP65, IP67, and IP68 standards
12V_DC to 30V_DC supply voltage
-40°C to +55°C operating temperature range

Indicators
- Green – power present, normal signal transmission
- Red/green – current approaching or over rating
- Red – fuse blown, signal transmission stopped

Banner Engineering S15J In-Line Fuses

Features

Applications

Specifications

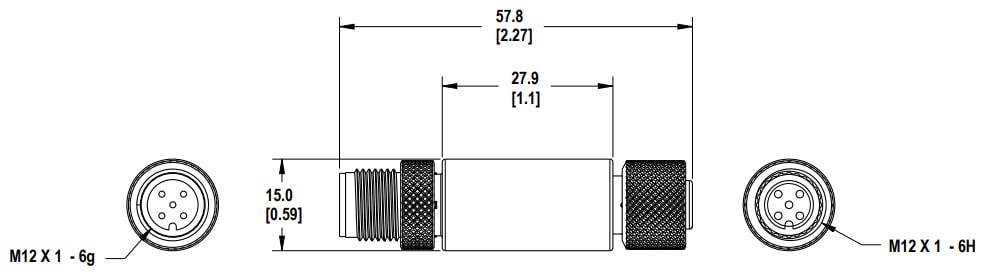

Dimensions
