Banner Engineering K100 Basic Daylight Visible Beacons

Banner Engineering K100 Basic Daylight Visible Beacons provide critical signaling in indoor and outdoor environments with a single color and optional alarm. These beacons are single-color devices with five color choices available. The K100 Beacons are easily installed using a bracket or conduit and M12 quick disconnect. These beacons provide four unique animations that enable intuitive indication. The K100 beacons clear lens avoids false indications. These beacons operate from –40°C to 60°C temperature range.

Features

Highly visible indicator provides bright, even light in direct sunlight
Five color choices are available
36mm threaded polycarbonate base

Rugged IP66 and UL Type 4X housing
Rugged UV-stabilized polycarbonate base and window

Specifications

Protected against reverse polarity and transient voltages
600μA leakage current immunity
Audible characteristics:
- 101dB at 1m sound intensity
Operating Conditions:
- –40°C to 60°C temperature range
- –40°C to 70°C storage temperature range
AC voltage Beacons:
- Supply voltage range:
  - 100V_AC to 240V_AC
- Indicator response time:
  - On response: 625ms (maximum)
  - Off response: 50ms (maximum)
- 589nm wavelength
- Connections:
  - Integral 5-pin 1/2 in. 20UNF male quick-disconnect connector

DC voltage Beacons:
- Supply voltage range:
  - 12V_DC to 48V_DC
- Indicator response time:
  - On response: 600ms (maximum)
  - Off response: 50ms (maximum)
- 528nm wavelength
- Connections:
  - Integral 5-pin M12 male quick-disconnect connector

Banner Engineering K100 Basic Daylight Visible Beacons

Features

Specifications

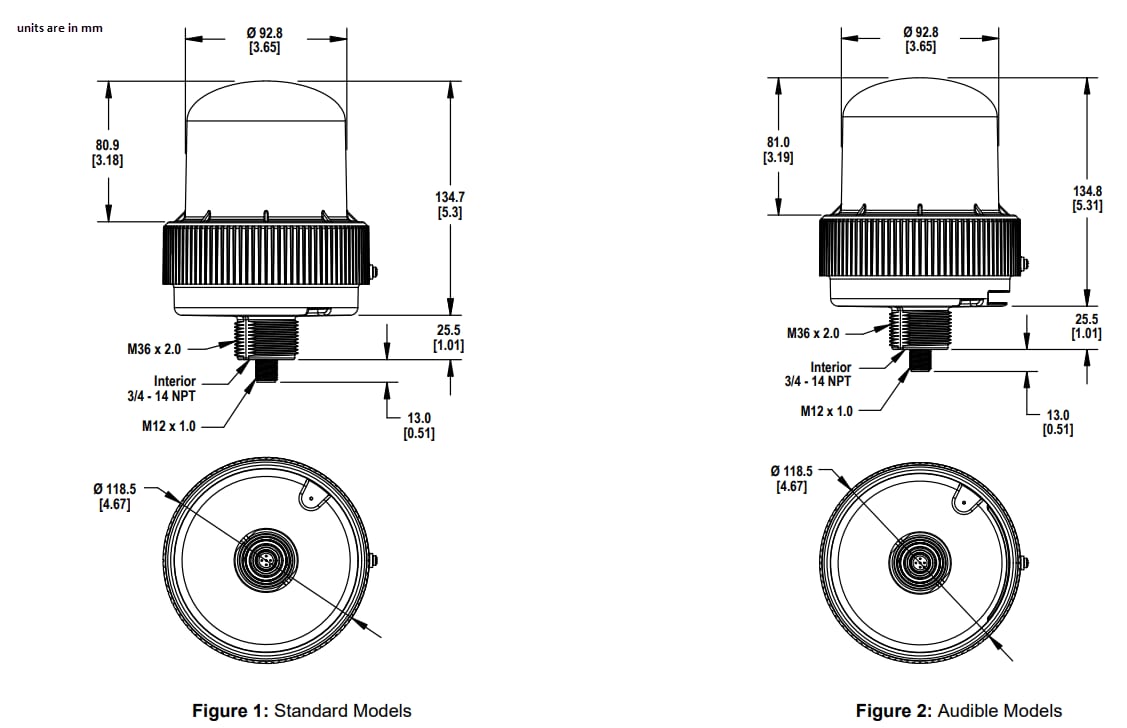

Dimension Diagram
