Azoteq IQS7225A ProxFusion Sensor Controller

Azoteq IQS7225A ProxFusion Sensor Controllers are designed for inductive sensing applications, including relative rotational inductive sensing and/or multiple inductive buttons. These sensor controllers feature capacitive sensing capabilities that can be used to compliment the inductive sensing applications. Full I²C compatibility with configurable address, along with on-chip calculations enable the IC to respond effectively even in its lowest power modes. Azoteq IQS7225A ProxFusion Sensor Controllers are designed for a variety of applications, including wearables, waterproof inductive controls, white goods interfaces, and smart home controllers.

Features

9 (QFN) external sensor pad connections
Configure up to 6 channels using external connections
External inductive sensor options
- Up to 6x self capacitive buttons
- Up to 6x mutual capacitive buttons
- Up to 6x inductive buttons

Automated system power modes for optimal response vs consumption
I²C communication interface with IRQ/RDY
I²C address selection using GPIO pin
Event and streaming modes
Customizable user interface due to programmable memory
2.2V to 3.5V supply voltage

Applications

Waterproof inductive dial/counter applications
Integrated control panel (dial + buttons)
Warables

Waterproof inductive buttons
White goods user interface
Smart home controls

Azoteq IQS7225A ProxFusion Sensor Controller

Features

Applications

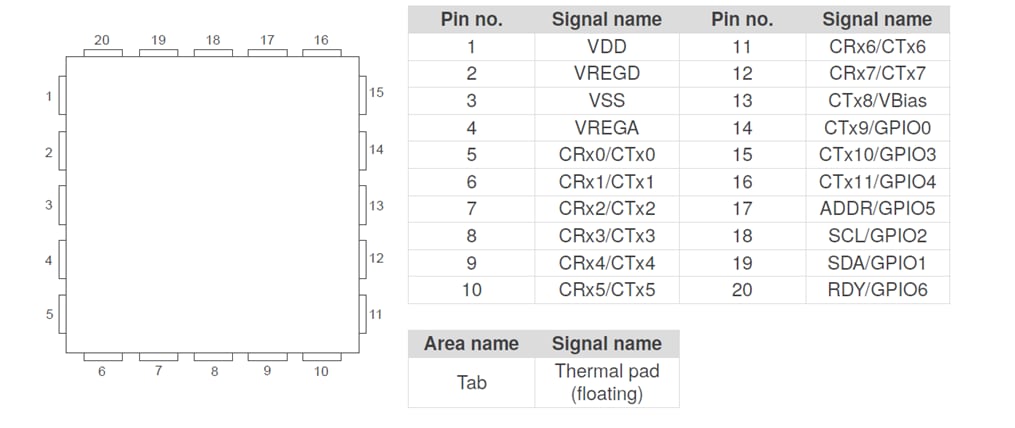

QFN20 Pin Diagram
