Atmosic Technologies ATM2202 BLUETOOTH® 5.0 SoC with Embedded Flash

Atmosic Technologies ATM2202 BLUETOOTH® 5.0 System-on-Chip (SoC) with Embedded Flash is an extremely low-power solution with an integrated BLUETOOTH 5.0 complaint radio with Arm® Cortex® M0 application processor. The ATM2202 SoC offers 512KB or 1MB embedded Flash, 128KB Random Access Memory (RAM), 4KB One-Time Programmable (OTP) memory, and sophisticated power management. With 1mA active Rx and 2.5mA active Tx, the ATM2202 SoC is designed to extend the Internet of Things (IoT) battery life. Low-duty cycle operation support allows systems to run significantly longer without battery replacement. The Atmosic Technologies ATM2202 SoC is packaged in a 40-pin 5mm x 5mm QFN package.

Features

Compliant with BLUETOOTH 5.0 standard
Supports BLUETOOTH 2Mbps, 1Mbps, 500kbps, and 125kbps
Fully integrated RF front-end
SoC typical power consumption with a 3V battery, including PMU
- 1.0mA active Rx at -95dBm
- 2.5mA active Tx at 0dBm
- 2µA retention at 32KB RAM
- 0.95µA hibernation with wakeup receiver
- 0.8µA hibernate
- 300nA SoC off
16MHz Arm Cortex M0 processor CPU, programmable interrupt router
Memory
- 512KB or 1MB embedded Flash
- 128KB RAM
- 4KB OTP
16KB to 128KB retention RAM configuration in 16KB step sizes

RF wake-up receiver
-40°C to +85°C operating temperature range
I²C, SPI, UART, PWM, and GPIO interfaces
10-bit application ADC
Digital microphone input (PDM)
SWD for interactive debugging
AES 128 hardware
True random number generator (TRNG)
Sensor hub
Keyboard matrix controller (KSM)
Quadrature decoder for mouse input (QDEC)
32.768kHz/16Mhz crystal oscillator
1.1V to 3.3V battery input voltage range with integrated Power Management Unit (PMU)
40-pin 5mm² QFN package

Applications

Industrial and enterprise
- Beacons and sensors
- Asset tracking
- Environmental monitors
Healthcare
- Asset tracking
- Patient monitoring

Home
- Home automation
- Remote control
- Human Interface Devices (HID)
Personal wearables
Automotive key fobs and accessories

Atmosic Technologies ATM2202 BLUETOOTH® 5.0 SoC with Embedded Flash

Features

Applications

Videos

Schematic

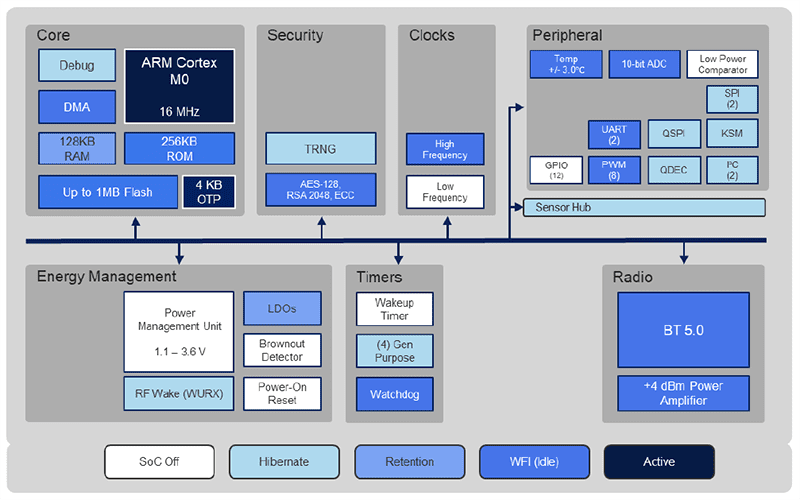

Block Diagram
