Arduino MKR IoT Carrier Board

Arduino MKR IoT Carrier Board is designed for IoT applications and MKR hobbyists. The Arduino MKR IoT Carrier Board features integrated sensors, circuits, and display. The Board is passive and requires an MKR board to function.

Features

Groove connectors
- Easy interface with a wide range of Groove modules and sensors
- 2x analog sensor input
- 1x I²C interface
ST LSM6DSOXTR 6-axis IMU sensor
- 3D accelerometer ±125/±250/±500/±1000/±2000dps (degrees per second) full-scale
- 3D gyroscope ±2/±4/±8/±16g full scale
- Advanced pedometer, step detector, and step counter
- Significant motion detection, tilt detection
- Free-fall, wake-up, 6D/4D orientation, click, and double-click standard interrupts
- Programmable finite state machine with accelerometer, gyroscope, and external sensors
- Machine learning Core
- Embedded temperature sensor
Rounded 1.3” TFT display
- 240 x 240 resolution
- 36mm x 40mm
Bosch BME688 environmental sensing with artificial intelligence
- Operating range
  - 300hPa to 1100 hPa pressure range
  - 0% to 100% humidity
  - -40°C to +85°C temperature range
- eNose gas sensor
  - ±15% ±15IAQ sensor-to-sensor deviation (IAQ)
  - 10.8 s/scan standard scan speed
  - 0.18mAh electric charge for standard scan (5x scans – 1 min)
  - Major sensor outputs: index for air quality (IAQ), bVOC- and CO2-equivalents (ppm), gas scan result (%), and intensity level

Broadcom APDS-9660 RGB and gesture sensor
- Ambient light and RGB color sensing
- Proximity sensing
- Gesture detection
- UV/IR blocking filter
- I²C interface to Arduino MKR board
Relays
- 2x KEMET EE2-5NU-L relays
- 5V coil voltage
- 2A current
- 220V_DC, 250V_AC
- Non-latching
- Common, normally open, and normally closed contacts
- LED status indicator
Peripherals
- 5x capacitive buttons
- Buzzer
- 5x digital RGB LEDs
- Rounded OLED 1.3” display
- 5x capacitive qTouch buttons
SD Card slot for memory
Power
- LI-ION 18650 3.7V battery holder
- USB battery charging via the MKR board (Runs up to 48h with a 3.7V 2500mAh)
I/O
- All sensors feature a wake-up function
- 2x analog Grove connectors
- 1x I²C Grove connector
- 2x relay connector
Class A safety

Arduino MKR IoT Carrier Board

Features

Videos

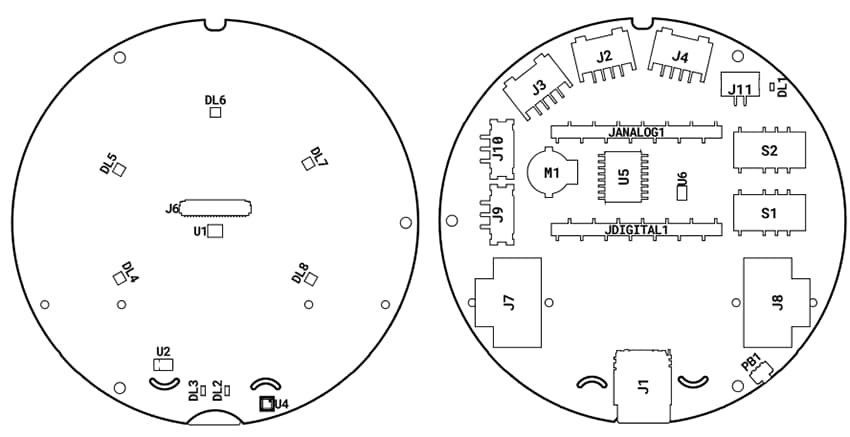

Front & Back Topology
