Aptiv HV RCS 890 SW Connectors

Aptiv HV RCS 890 SW Connectors are high-voltage (HV) connectors designed for compact environments. The series features 600V_DC maximum voltage and 210A maximum current. Aptiv HV RCS 890 SW Connectors also provide high-water protection resulting from its sealed unmated header. These connectors include a slider feature that offers easy assembly and maximum pressure surface in limited-space conditions.

Features

Designed for compact environments
High-water protection resulting from sealed unmated headers
Easy assembly thanks to slider feature on female connector
Header has flat and simple device interface

Slider solution offers maximum pressure surface in limited-space conditions
Connectors dismount in two steps for a time delay between interlock opening and power disconnection

Applications

AC/DC inverters
DC/DC converters
HV batteries

Power electric boxes
HV power-distribution units

Specifications

Wire-to-device connector type
90° cable exit orientation
35mm² to 70mm² cable range
Two power terminals
-40°C to +125°C temperature range

IP2XB electrical protection
600V_DC maximum voltage
210A maximum current at +85C
V1 vibration level
IP67 / IP6K9K sealing class

Aptiv HV RCS 890 SW Connectors

Features

Applications

Specifications

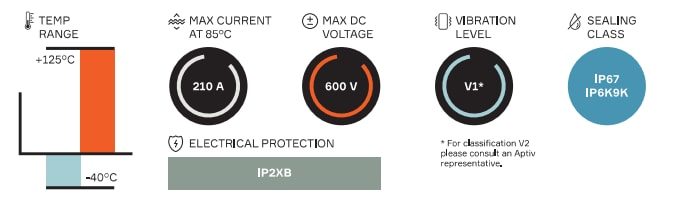

Performance Capabilities
