Aptiv HV RCS 800 Electrical Vehicle Connectors

Aptiv HV RCS 800 Electrical Vehicle Connectors come in a compact package with a unique integrated electric interlock. Aptiv HV RCS 800 Electrical Vehicle Connectors feature an integrated ErgoMate™ Axial Mating Assist System on the harness connector that assures easy assembly. The header is sealed in mated and unmated positions. The series provides a cost-effective design due to the direct connection between the female connector and male terminals within the device. The connectors include unique and safe mating screwing with an innovative Screw Position Assurance (SPA) feature.

Features

Easy to assemble with integrated ErgoMate Axial Mating Assist System on harness connector
Compact package with a unique integrated electric interlock
Header sealed in mated and unmated positions

Bundle shielding with external braid
Panel mount to devices with face seal to module
Two-stage disconnect for safe unmating

Applications

AC/DC inverters
DC/DC converters
HV batteries

Power electric boxes
HV power-distribution units (PDUs)

Specifications

-40°C to +125°C temperature range
210A maximum current at +85°C
1000V_DC maximum voltage

V1 vibration level
IP67/IP6K9K sealing class
IP2XB electrical protection

Aptiv HV RCS 800 Electrical Vehicle Connectors

Features

Applications

Specifications

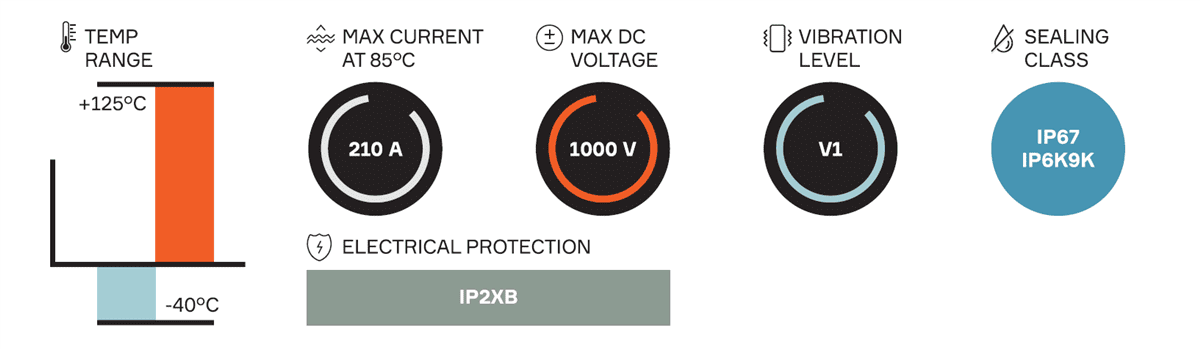

Performance Infographic
