Apex Microtechnology SA111PQ Silicon Carbide Half-Bridge Power Module

Apex Microtechnology SA111PQ Silicon Carbide Half-Bridge Power Module is created with Silicon Carbide (SiC) technology. The module features a leading-edge package design to expand thermal efficiency and power density in analog modules. The SA111PQ is housed in a surface-mount package with a body of 20mm x 20mm. It can provide continuous output currents of 32A, manage supply voltages of up to 650V, and achieve switching frequencies of up to 1MHz.

Features

24A continuous output current, 32A for A-grade
650V supply voltage
≥500kHz switching frequency
650V supply
Increased thermal efficiency case temperature range from -40°C to +125°C

56W internal power dissipation
Compact (22mm²), surface mount, QFP-52 package with top-side heatsinking
Integrated gate drive with undervoltage lockout and active Miller clamping
RoHS compliant

Applications

MRI gradient coil-drive
Magnetic bearings
Motor drive
Test equipment

Server-fans
Power Factor Correction (PFC)
AC/DC and DC/DC converters

Apex Microtechnology SA111PQ Silicon Carbide Half-Bridge Power Module

Features

Applications

Module Block Diagram

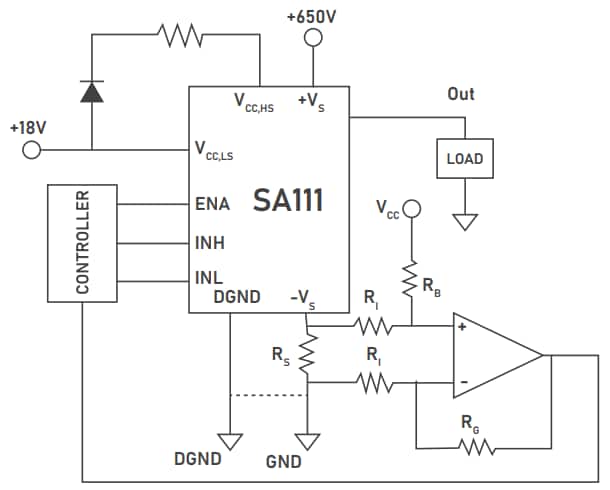

Typical Half-Bridge with Current Sense
