Apex Microtechnology AIC1605 High Voltage Interface IC

Apex Microtechnology AIC1605 High Voltage Interface IC features high voltage N-Type and P-Type open drain outputs, a buck and linear regulator, two OP-AMPs, and two LED drivers. The AIC1605 is highly suitable for building a three-wire sensor interface. The Apex Microtechnology AIC1605 High Voltage Interface IC offers a wide 5V to 36V supply voltage range and can be used as a supply or output stage for various other applications.

Features

Wide supply voltage range (5V to 36V)
Built-in 5V/20mA linear regulator
Adjustable fixed-frequency buck regulator (8V to 34V)
P-Type and N-Type open drain outputs, 100mA, over-current, and short circuit protected

2x LED current sinks, 2mA
2x generic operational amplifiers
Buck and linear regulators are useable in different configurations
Wide range of target applications

Applications

Inductive proximity sensing companion
Optical switch drives
Pre-amplifiers
LED drivers

DC motor control
UART – RS232 converter
MCU, I/O, or sensor interfaces

Apex Microtechnology AIC1605 High Voltage Interface IC

Features

Applications

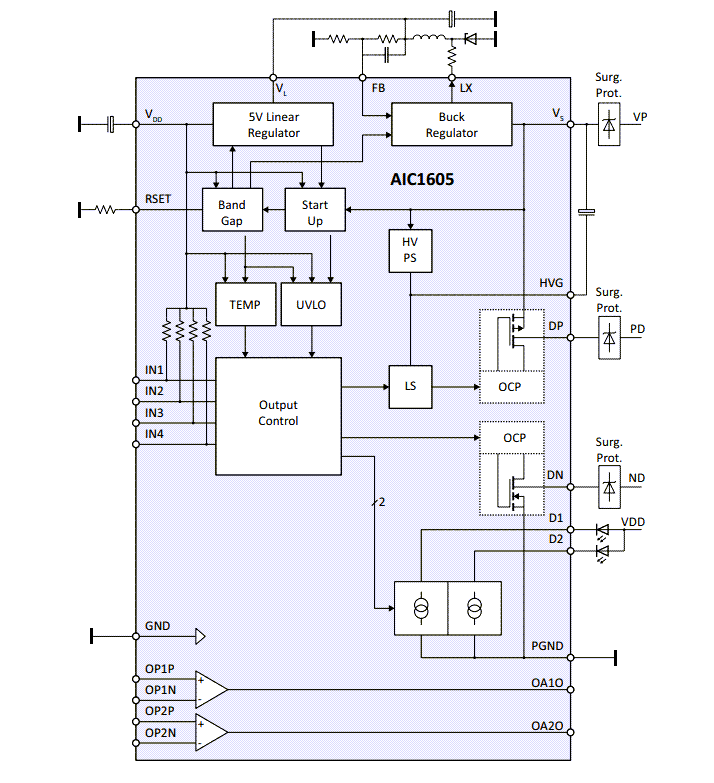

Simple Application Circuit

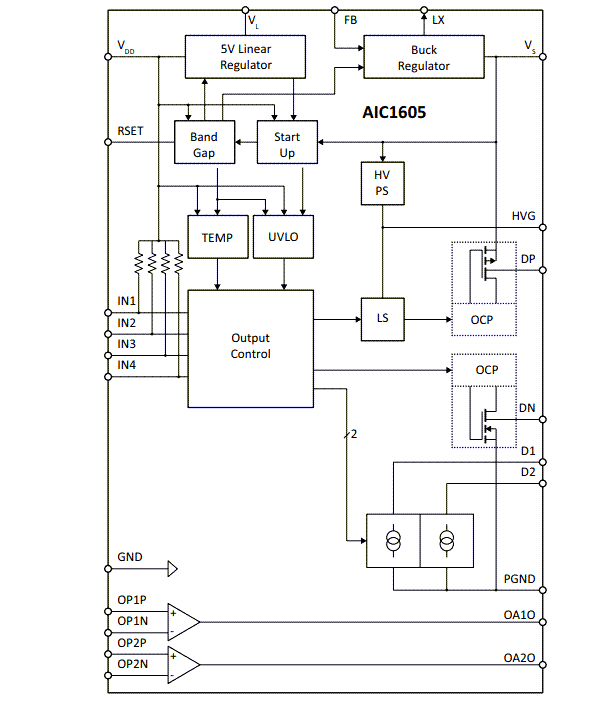

Block Diagram
