APEM XP Joysticks

APEM XP Joysticks Mid-size flexible proportional joystick designed with non-contacting Hall Effect technology. These mid-size palm joysticks offer dual and dual inverse analog and PWM outputs with CAN J1939 and CANopen. The XP joysticks provide one or two axis with all-metal mechanism construction. Analog and PWM joysticks are fitted to the joysticks as standard with 180mm(+/- 20mm) harnesses. These XP joysticks comply with EMC emissions level EN61000-6-3:2001, CPSPR 32:2015, Class B 30MHz to 1GHz, and IP66 sealing standards. The XP joysticks operate at -30°C to 70°C temperature range and 5V ±0.5V power supply. These joysticks are well-suited for indoor and outdoor applications.

Features

One or two axis
Dual and dual inverse analog and PWM outputs
EN61000-6-3:2001, CPSPR 32:2015, class B 30MHz to 1GHz EMC emissions level
IP66 sealing
Up to 12N operating force (subject to handle)

1000N (225lbf) maximum vertical load
CAN J1939 and CANopen
All metal mechanism construction
Industrial operation applications
Expected mechanical life: 10 million lifecycles

Specifications

±10% x V to ±50% x V analog output voltage range
10Ω output impedance
20V overvoltage (max)

5V ±0.5V power supply
-30°C to 70°C operating temperature range
-40°C to 85°C storage temperature range

APEM XP Joysticks

Features

Specifications

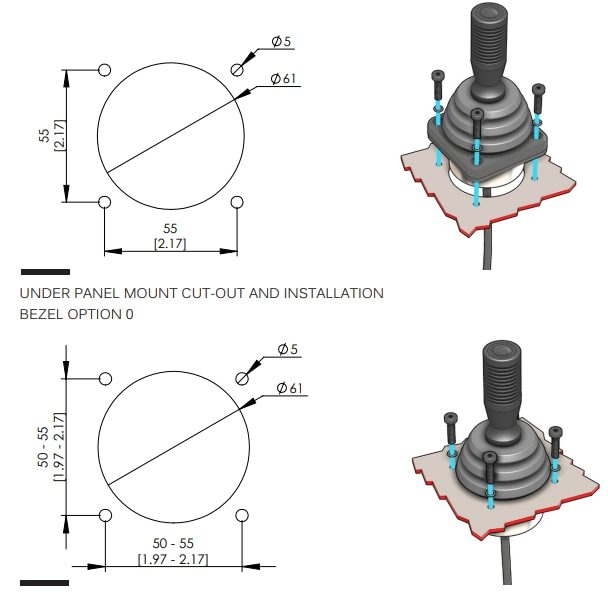

Mounting Image
