APEM CG Capacitive Switches

APEM CG Capacitive Switches are pushbuttons for underlay applications. The APEM CG Capacitive Switches are activated by the touch of a finger and provide a long life of 50 million cycles. The series includes an auto-calibration function and allows for mounting under non-conductive surfaces.

Features

Activated by the touch of a finger
50 million cycles
Auto-calibration function

Mounting under non-conductive surfaces
Mating harness on request

Specifications

5V_DC, 12V_DC, or 24V_DC supply voltage
15mA maximum (12V) supply current
200mA/24V_DC maximum current/voltage rating
1Ω maximum switch resistance ON
10mA maximum mode OFF power consumption

NPN output type
Triggered by flowing water
-40°C to +70°C operating temperature range
Adhesive and connector resistant to vibrations

Wiring Diagram

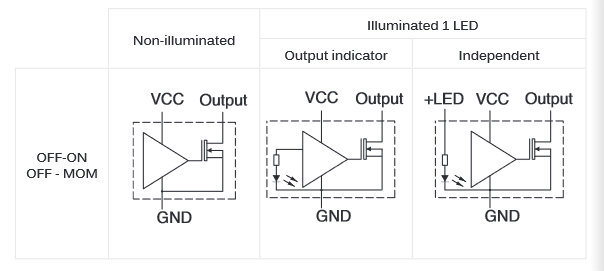

Block Diagram - APEM CG Capacitive Switches
