Apacer Technology Inc. SV240-300 Serial ATA Flash Drives

Apacer Technology Inc. SV240-300 Serial ATA Flash Drives are well-balanced Solid State Disk (SSD) drives with a standard form factor and outstanding performance. These flash drives deliver up to 560MB/sec sequential read and 600MB/sec burst read/write. Designed with SATA-based connector pinouts and in a SATA 6Gbps interface, SV240-300 drives fully comply with the SATA Revision 3.2 interface specifications delivering superb performance. The SV240-300 serial ATA flash drives feature Advanced Encryption Standard (AES), ensuring the data is always safeguarded. These flash drives feature a 3.3V±5% supply voltage and a 0°C to 70°C standard operating temperature range. The SV240-300 flash drives appear in 50.80mm x 29.85mm x 4.85mm dimensions and include LED indicators for drive behavior.

Features

Flash management:
- Low-Density Parity-Check (LDPC) code
- Global wear leveling
- Flash bad-block management
- Flash translation layer – page mapping
- S.M.A.R.T.
- DataDefender^™
- Device sleep
- ATA secure erase
- TRIM
- Hyper cache technology
- Over-provisioning
- DataRAID^™
- SMART Read Refresh^™

Performance:
- 600MB/sec burst read/write
- Up to 560MB/sec sequential read
52-pin mSATA connector
Security:
- AES 256-bit hardware encryption
- Trusted Computing Group (TCG) Opal 2.0 (optional)
Reliability:
- Thermal sensor
- End-to-End Data protection
LED indicators for drive behavior
RoHS compliant

Specifications

Temperature range:
- Operating:
  - 0°C to 70°C standard
  - -40°C to 85°C wide
- -55°C to 100°C storage
3.3V±5% supply voltage

>3,000,000 hours MTBF
Form factor:
- JEDEC MO-300
- 50.80mm x 29.85mm x 4.85mm dimensions
- 7.8g ± 5% net weight

Apacer Technology Inc. SV240-300 Serial ATA Flash Drives

Features

Specifications

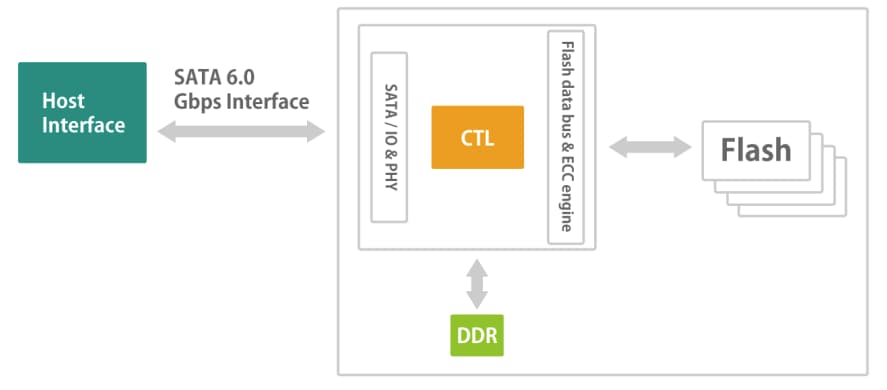

Functional Block Diagram

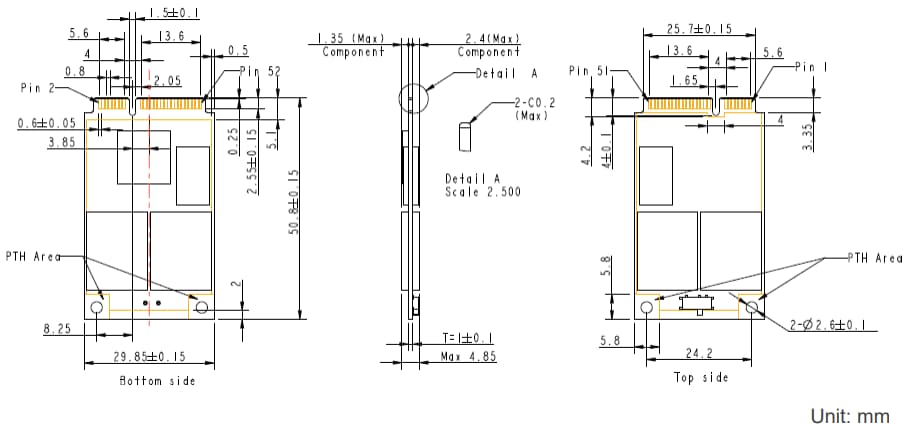

Dimensions
