Apacer Technology Inc. SH250-M280 Anti-Sulfuration SSDs

Apacer Technology Inc. SH250-M280 Anti-Sulfuration SSDs are well-balanced Solid-State Disk (SSDs) drives that come with a standard form factor and great performance. These SSDs are designed in SATA 6Gb/s interface are able to deliver exceptional read/write speed. This makes it the ideal companion for heavy-loading industrial or server operations. The SH250-M280 SSDs feature anti-sulfuration technology with ANSI/ISA 71.04 2013 standard compliance. This lets the SSDs achieve a complete air barrier through strict inspection of special materials and technologies to increase system lifetime and ensure product reliability and durability.

The SH250-M280 Anti-Sulfuration SSDs utilize 3D NAND for higher capacity up to 320GB and provide more power efficiency than 2D NAND. These SSDs are implemented with Low-Density Parity Check (LDPC) ECC engine to extend SSD endurance and increase data reliability while reading raw data inside a flash chip. The SH250-M280 anti-sulfuration SSDs are housed in M.2 2280 mechanical dimensions and are ideally suitable for defense, server, and networking.

Features

Adopts advanced LDPC ECC engine with 3D NAND SLC-liteX technology to improve reliability
Global wear leveling
Supports SSDWidget S.M.A.R.T function

End-to-End data protection
TRIM Support
Supports AES 256-bit encryption
Supports DataDefender™ technology

Specifications

Capacity:
- 10GB, 20GB, 40GB, 80GB, 160GB, and 320GB
Performance:
- Burst read/write: 600MB/sec
- Sequential read: Up to 560MB/sec
- Sequential write: Up to 520MB/sec
- Random read (4K): Up to 62,000 IOPS
- Random write (4K): Up to 74,000 IOPS
Flash management
- Low-Density Parity-Check (LDPC) Code
- Global wear leveling
- Flash bad-block management
- Flash translation layer: page mapping
- S.M.A.R.T.
- DataDefender™
- Device Sleep
- ATA Secure Erase
- TRIM
- Over-Provisioning
- SMART Read Refresh™
- SLC-liteX
3D TLC NAND Flash type
>3,000,000 hours MBTF
Connector type:
- 75-pin SATA-based M.2 module pinout

Endurance (in drive writes per day: DWPD)
- 10GB: 11.09 DWPD
- 20GB: 12.99 DWPD
- 40GB: 11.61 DWPD
- 80GB: 10.14 DWPD
- 160GB: 8.81 DWPD
- 320GB: 12.42 DWPD
Temperature range:
- Operating:
  - Standard: 0°C to 70°C
  - Wide: -40°C to 85°C
- Storage: -40°C to 100°C
3.3V±5% supply voltage
Power consumption:
- Active mode: 480mA
- Idle mode: 65mA
Security:
- AES 256-bit hardware encryption
Reliability:
- Thermal Sensor
- End-to-End Data Protection
- Anti-Sulfuration

Apacer Technology Inc. SH250-M280 Anti-Sulfuration SSDs

Features

Specifications

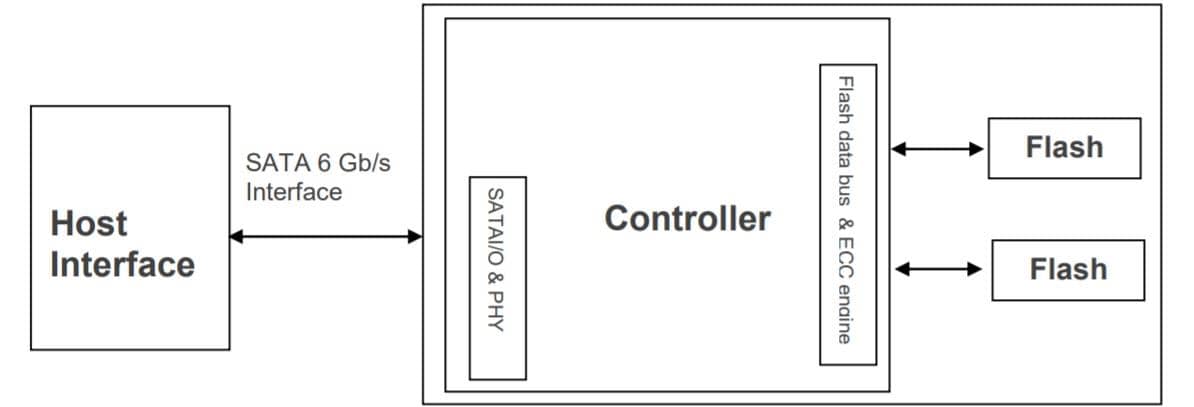

Functional Block Diagram
