Apacer Technology Inc. PV910-M280 PCI Express Flash Drives

Apacer Technology Inc. PV910-M280 PCI Express Flash Drives feature low latency and high performance of up to 1,615MB/s read and 1,310MB/s write. These flash drives are built with a powerful PCIe controller that supports on-the-module ECC as well as an efficient wear-leveling scheme. The PV910-M280 flash drives are implemented with Low-Density Parity Check (LDPC) ECC engine to extend SSD endurance and increase data reliability. These flash drives are equipped with a built-in thermal sensor to monitor the temperature of the SSD via S.M.A.R.T commands. The PV910-M280 drives are configured with thermal throttling to dynamically adjust frequency scaling to enhance data reliability and provide sustained performance while overheating. These flash drives implement power saving modes, flash block management, S.M.A.R.T., TRIM, Hyper Cache technology, overprovisioning, DataDefender™, and SMART Read Refresh™. Typical applications include industrial, imaging, computing, and enterprise markets.

Features

Flash management:
- Low-Density Parity-Check (LDPC) code
- Global wear leveling
- Flash bad-block management
- Page mapping flash translation layer
- DataDefender™
- S.M.A.R.T.
- TRIM
- Hyper Cache technology
- Over-provisioning
- SMART Read Refresh™
- NVMe Secure Erase
3D TLC (BiCS3) NAND flash type
LED indicators for drive behavior
RoHS compliant

75-pin M.2 module pinout connector type
Power management:
- Supports APST
- Supports ASPM L1.2
Security:
- AES 256-bit hardware encryption
- Signed firmware
Reliability:
- Thermal sensor
- Thermal throttling
- End-to-end data protection

Specifications

Capacity:
- Single side: 120GB, 240GB, and 480GB
- Double side: 960GB
Performance:
- 2GB/sec interface burst read/write
- Up to 1,615MB/sec sequential read
- Up to 1,310MB/sec sequential write
- Up to 135,000IOPS Random read (4K)
- Up to 130,000IOPS random write (4K)
>3,000,000 hours MTBF
Endurance (in Drive Writes Per Day: DWPD):
- 120 GB: 2.02DWPD
- 240GB: 1.99DWPD
- 480GB: 1.96DWPD
- 960GB: 1.86DWPD

Temperature range:
- 0°C to 70°C standard operating temperature range
- -40°C to 85°C wide operating temperature range
- -40°C to 100°C storage temperature range
3.3V ±5% supply voltage
Power consumption:
- 745mA in active mode (maximum)
- 145mA in idle mode
Form factor:
- M.2 2280-D5-B-M key
- Dimensions:
  - 22mm x 80mm x 2.38mm single side
  - 22mm x 80mm x 3.88mm double side
- 6.61g ±5% net weight

Applications

Industrial
Imaging

Computing
Enterprise markets

Apacer Technology Inc. PV910-M280 PCI Express Flash Drives

Features

Specifications

Applications

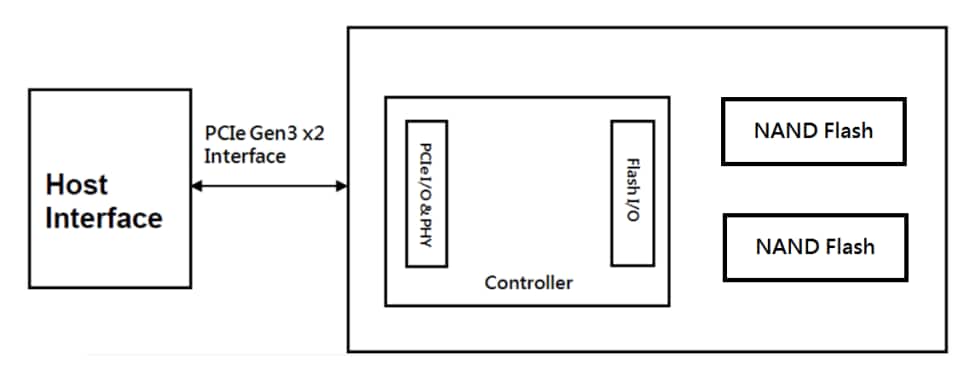

Functional Block Diagram

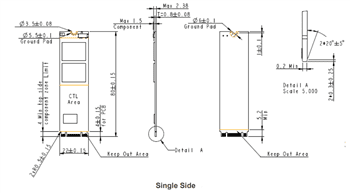

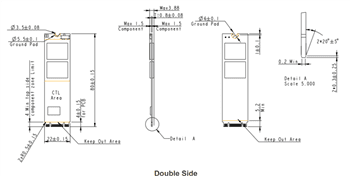

Dimensions Diagrams
