Apacer Technology Inc. PT220-M242 PCI Express Flash Drives

Apacer Technology Inc. PT220-M242 PCI Express Flash Drives are designed to deliver exceptionally low latency and outstanding performance in an M.2 2242 mechanical dimensions. These SSDs are fully compliant with the PCIe Gen3 x4 interface and NVMe 1.3 specifications to operate in different power-management modes while consuming low power. The PT220-M242 flash drives are built with a powerful PCIe controller that supports on-the-module ECC as well as an efficient Wear Leveling scheme. These industrial SSDs adopt advanced LDPC ECC engines with 3D NAND flash memory to improve reliability. The PT220-M242 PCI flash drives exhibit flash block management, S.M.A.R.T., TRIM, Hyper Cache technology, DataDefender™, and DataRAID™. Typical applications range from industrial, imaging, gaming, and computing to enterprise markets.

Features

PCIe interface:
- Compliant with PCI Express 3.1
- Compliant with NVMe 1.3
- Compatible with PCIe Gen3 x4 interface
Capacities:
- 128GB, 256GB, or 512GB
- 1TB
Performance:
- Interface burst read/write: 4GB/sec
- Sequential read: up to 2,400MB/sec
- Sequential write: up to 2,100MB/sec
- Random read (4K): up to 158,000 IOPS
- Random write (4K): up to 303,000 IOPS
Flash management:
- Low-Density Parity-Check (LDPC) code
- Global wear leveling
- Flash bad-block management
- Page mapping flash translation layer
- S.M.A.R.T.
- DataDefender™
- TRIM support
- Hyper Cache Technology
- NVMe Secure Erase
3D TLC (BiCS5) NAND Flash type
MTBF: >3,000,000 hours
Endurance (in drive writes per day – DWPD)
- 128GB: 2.38DWPD
- 256GB: 1.99DWPD
- 512GB: 2.25DWPD
- 1TB: 1.96DWPD

NVMe features:
- Supports Host Memory Buffer (HMB)
Temperature ranges:
- Operating: 0°C to 70°C
- Storage: -55°C to 100°C
3.3V ± 5% supply voltage
Power consumption:
- Active mode: 1,235mA (maximum)
- Idle mode: 255mA
Connector types:
- 75-pin M.2 module pinout
Power management:
- Supports APST
- Supports ASPM L1.2
Form factor:
- M.2 2242 double side, M Key
- Dimensions: 22.00mm x 42.00mm x 4.08mm (maximum)
- 4.2g±5% net weight
Security:
- AES 256-bit hardware encryption
Reliability:
- Thermal sensor
- Thermal throttling
- End-to-end data protection
- Sidefill
- Heatsink design
LED indicators for drive behavior
RoHS compliant

Applications

Industrial
Imaging
Gaming

Computing
Enterprise markets

Apacer Technology Inc. PT220-M242 PCI Express Flash Drives

Features

Applications

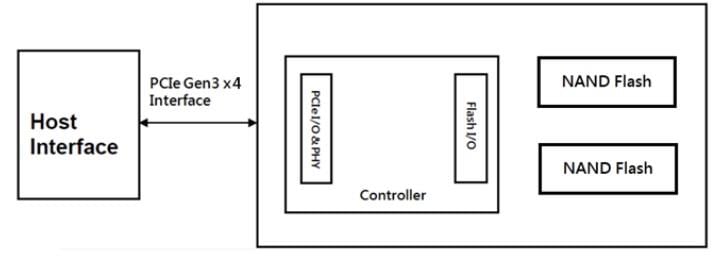

Functional Block Diagram
