Apacer Technology Inc. FIPS 140-2 Validated TCG 2.5″ SSDs

Apacer Technology Inc. FIPS 140-2 Validated TCG 2.5″ SSDs utilize the SV240-25 solid-state drive with military-grade encryption that corresponds to the FIPS 140-2 Level 2 cryptographic standard. The device was developed as the regular 2.5″ form factor and compliant with SATA III standard with excellent performance.

The Apacer FIPS 140-2 SSDs employ 3D NAND for a higher capacity of up to 1920GB and deliver more power efficiency than 2D NAND. The hardware-encrypted SSD offers enhanced data security and supplies remarkable read/write speed, making it the ideal solution for industries that require high demand for FIPS 140-2 Certification.

Features

Compliance with SATA Revision 3.2
- SATA 6Gb/s interface
- Backward compatible with SATA 1.5 and 3Gb/s interfaces
- ATA command set-4 (ACS-4)
240GB, 480GB, 960GB, 1920GB Capacity
Performance
- 600MB/sec Burst read/write
- Sequential read up to 560MB/sec
- Sequential write up to 500MB/sec
- Random read (4K) up to 94,000IOPS
- Random write (4K) up to 80,000IOPS
Flash management
- Low-Density Parity-Check (LDPC) code
- Global wear leveling
- Flash bad-block management
- Flash translation layer: page mapping
- S.M.A.R.T.
- DataDefender™
- ATA Secure erase
- Device sleep
- TRIM
- Hyper cache technology
- Over-provisioning
- DataRAID™
- SMART Read Refresh™
Endurance (in-drive writes per day DWPD)
- 240GB: 2.20 DWPD
- 480GB: 2.20 DWPD
- 960GB: 2.18 DWPD
- 1920GB: 2.2 DWPD

NAND Flash Type of 3D TLC (BiCS5)
>3,000,000 hours MTBF
Temperature Range
- 0°C to 70°C standard and -40°C to 85°C wide operating temperature ranges
- -55°C to 100°C Storage temperature range
5V ± 10% Supply voltage
Power consumption
- 405mA Active mode (Max.)
- 60mA Idle mode
SATA Power management modes
DRAM Cache for enhanced random
Performance
Connector type
- 7-pin SATA signal connector
- 15-pin SATA power connector
2.5” Form factor
- 100mm x 69.84mm x 9.30mm Dimensions
- 95g ± 5% Net weight
Security
- AES 256-bit hardware encryption
- Trusted Computing Group (TCG) Opal 2.0
Reliability
- Thermal sensor
- Thermal throttling
- End-to-End data protection
FIPS 140-2 Level 2 Certified: certificate number #4386
RoHS compliant

Applications

Government
Defense

Healthcare
Financial institutions

Apacer Technology Inc. FIPS 140-2 Validated TCG 2.5″ SSDs

Features

Applications

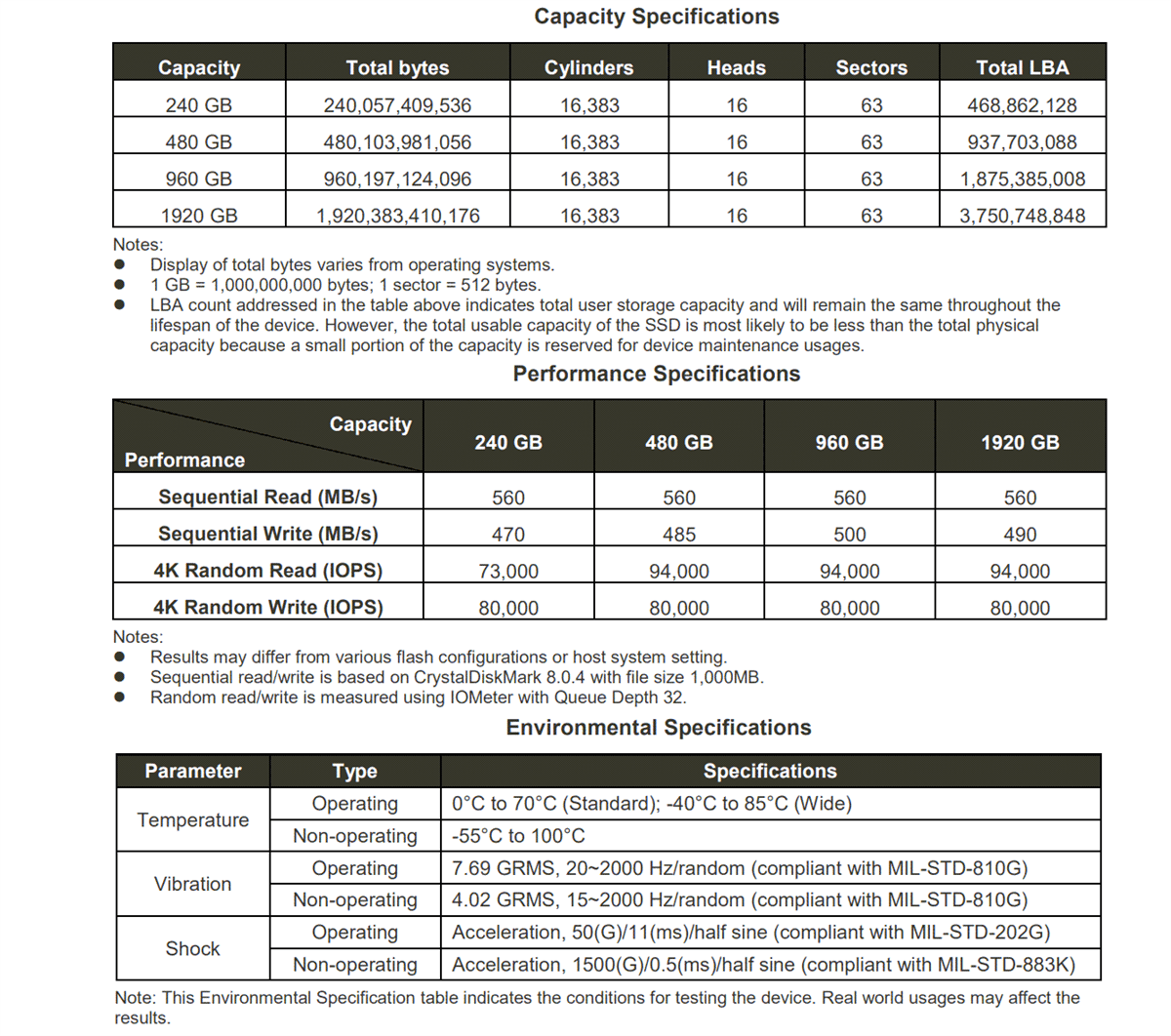

Specifications

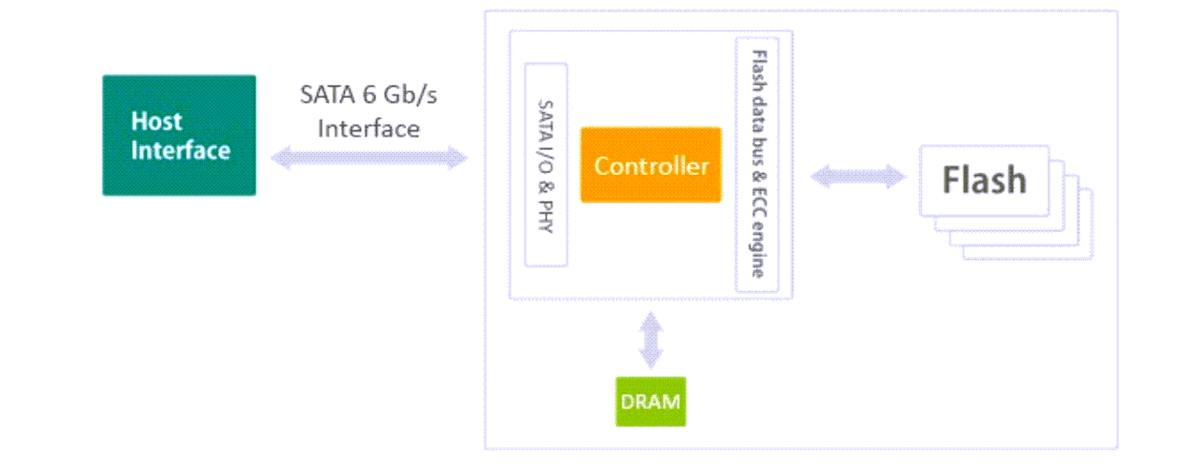

Functional Block Diagram

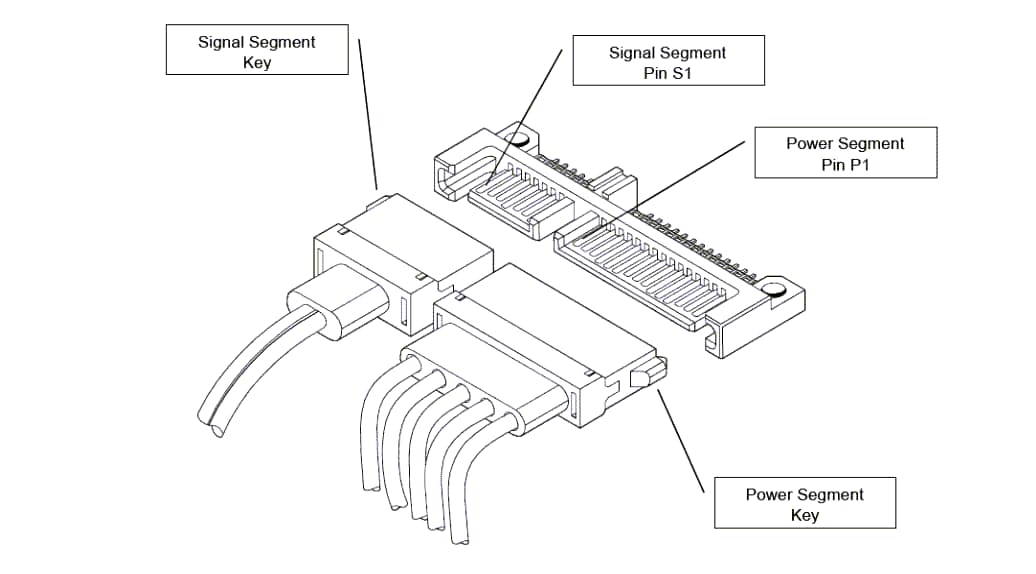

SATA Connectors
