Antenova Lutosa SRFL061 flexiiANT® Antenna

Antenova Lutosa SRFL061 flexiiANT^® Antenna is a flexible antenna with a cable that enables direct connection to the host PCB for easy integration. This antenna supports the most common 5G bands that cover the 617MHz to 3800MHz range. The SRFL061 flexiiANT^® antenna offers high efficiency, high performance, and quick integration that minimizes the design cycle. This antenna is stored at the -10°C to 40°C temperature range and operates at the -40°C to 85°C temperature range. The SRFL061 flexiiANT^® antenna offers 18months of shell life and is RoHS and REACH compliant. Typical applications include network devices such as cellular routers, stations, 5G cellular applications, remote monitoring, POS terminals, M2M, IoT, CCTV over cellular, and drone communications.

Features

Antenna for 5G cellular applications
High performance:
- DFI (Designed For Integration)

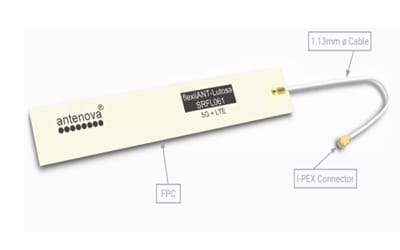

1.13mm diameter RF cable with I-PEX MHF connector
Self-adhesive mounted and does not require matching
Quick integration minimizes the design cycle

100mm or 150mm cable (other lengths available and MOQs apply)
Horizontal (in-line) cable
Supports Band 74 (1420MHz to 1520MHz)
RoHS and REACH compliant
High efficiency (Assists with PTCRB certification)

Specifications

-40°C to 85°C operating temperature range
-10°C to 40°C storage temperature range
50Ω impedance
<0.5g weight

95mm x 15mm x 0.15mm dimensions
18months shell life
<75%RH humidity

Applications

Network devices such as cellular routers
Pico base-stations
Remote monitoring
Point of Sale (POS) terminals

Machine to Machine (M2M)
Internet of Things (IoT)
Closed Circuit TV (CCTV) over cellular
Drone communications
