Antenova Fera SRFI068 flexiiANT® Antennas

Antenova Fera SRFI068 flexiiANT® Antennas offer vertical and horizontal 100mm versions ideal for all ISM 915MHz applications. The flexible Fera SRFI068 Antennas feature a cable that allows direct connection to the host PCB. Quick integration minimizes the design cycle with plug-and-play simplicity.

Features

Antenna for all 915MHz ISM applications
Maintains high performance within the device, DFI (Designed For Integration)
1.13mm diameter RF cable with I-PEX MHF connector
Self-adhesive mounted

Quick integration minimizes the design cycle
High performance
100mm or 150mm cable – (other lengths available, MOQs apply)

Applications

Remote monitoring
LoRa and Sigfox networks
915MHz ISM band systems

Smart meters
Home automation
Medical devices

Specifications

902-928MHz Frequency
Linear polarization
-40°C to +85°C Operating temperature
ISO16750-4 5.1.1./5.1.2 Environmental condition test
50Ω Impedance

<0.5g Weight
FPC Self-adhesive 3M 468MP Antenna type
33.0mm x 13.0mm x 0.15mm Dimensions
I-PEX MHF1 (20278-112R-13) Connection

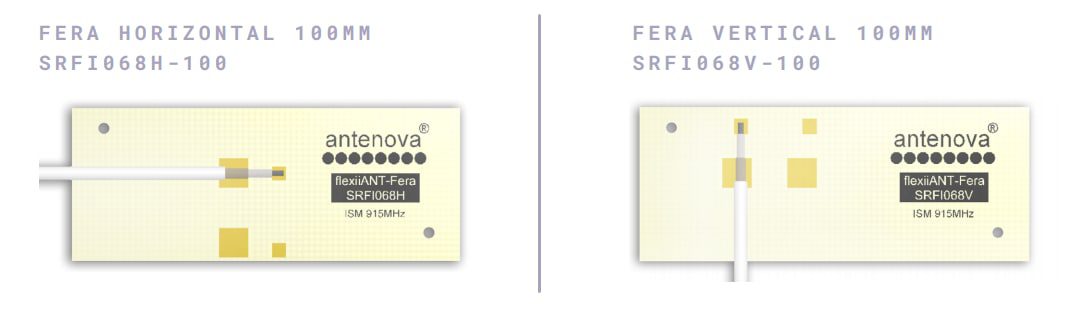

Overview

Location Circuit - Antenova Fera SRFI068 flexiiANT® Antennas
