Antenova Curta SR4L096 Antennas

Antenova Curta SR4L096 Antennas are designed for 4G and 3G applications and can perform across a wide range of frequencies. The antennas can be placed on the short edge of a printed circuit board (PCB), which can be integrated as a single antenna or a MiMo system. The Antenova Curta SR4L096 Antennas feature a compact design, an automotive temperature rating, and are ideal for OBD2 vehicle tracking systems, 4G routers, medical equipment, and other applications.

Features

Antenna for 4G and 3G applications
PCB short edge placement
SMD-mounted device supplied on tape and reel
Automotive temperature rating
Compact design (40mm x 10mm x 1.7mm)
Ideal for MiMo systems

Applicable with LTE, GSM, CDMA, DCS, PCS, WCDMA, UMTS, HSPDA, GPRS, EDGE, and IMT
Various band ranges
- 698MHz to 960MHz
- 1710MHz to 2170MHz
- 2300MHz to 2400MHz
- 2500MHz to 2700MHz

Applications

OBD2 vehicle tracking systems
4G routers
Medical equipment
Tablets

Industrial systems
MiMo systems
Femtocell/picocell networks
IoT sensor networks

Specifications

Linear polarization
-40°C to +140°C operating temperature

50Ω impedance with matching
<1.5g weight

Antenova Curta SR4L096 Antennas

Features

Applications

Specifications

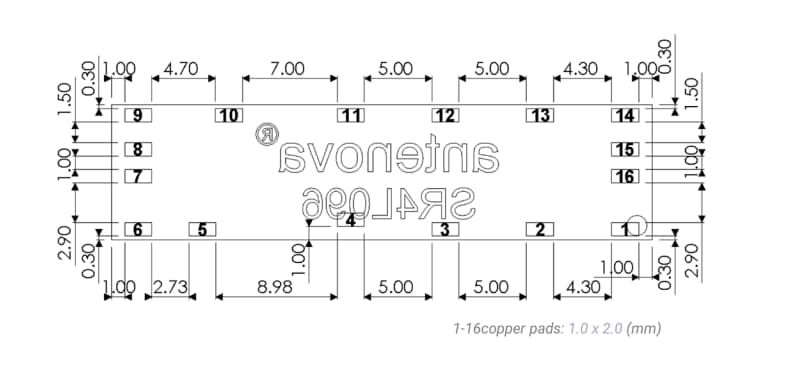

Host PCB Footprint
