Antenova Atta SRFI079 FPC Cellular Antennas

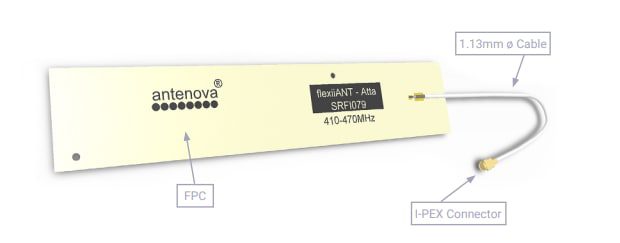

Antenova Atta SRFI079 FPC Cellular Antennas operate on the LTE 410MHz and LTE 450MHz bands. The Antenove Atta features an FPC antenna with a cable that enables direct connection to the host PCB with an I-PEX coax connector. The host PCB ground is not used, making the antenna easy to integrate. These 101.0mm x 20.0mm x 0.15mm antennas feature a 410MHz to 470MHz frequency range and linear polarization.

Features

Antenna for the LTE 410MHz and LTE 450MHz bands
Maintains high performance within device – designed for integration (DFI)
1.13mm diameter RF cable with I-PEX MHF connector
Self-adhesive mounted

Quick integration minimizes design cycle time
High efficiency without using the host PCB for a ground plane
150mm cable

Applications

LTE 410MHz and LTE 450MHz bands used for data collection, such as smart metering
Band 88 LTE410, 412MHz to 417MHz (uplink), 422MHz to 427MHz (downlink)

Band 72 LTE450, 451MHz to 456MHz (uplink), 461MHz to 466MHz (downlink)
433MHz ISM band

Specifications

410MHz to 470MHz frequency
Linear polarization
-40°C to +85°C operating temperature range
ISO16750-4 5.1.1./5.1.2 environmental condition test

50Ω impedance
<0.5g weight
101.0mm length x 20.0mm width x 0.15mm height
