Antenova Admotus SMT Ceramic Antennas

Antenova Admotus SMT Ceramic Antennas are designed to connect with L1 GNSS signals on all constellations. The antennas connect with GPS L1, GLONASS L1, Galileo E1, BeiDou B1, and QZSS within a 1559MHz to 1610MHz frequency range. Antenova Admotus SMT Ceramic Antennas feature a small 7mm x 15mm footprint area and a 53% average efficiency rating. The antennas are ideal for wearable devices, small asset trackers, unmanned aerial vehicles (UAVs), agriculture robotics, and telematics device applications.

Features

Designed for L1 GNSS signals on all constellations
GPS (L1), GLONASS (L1), Galileo (E1), BeiDou (B1), QZSS antenna clearance area (15mm x 7mm)

53% high-efficiency rating across L1 band
RoHS/REACH compliant

Applications

Wearable devices
Small asset trackers
UAVs

Drones
Agriculture robotics
Telematics devices

Specifications

1559MHz to 1610MHz frequency range
0.9dBi peak gain
-2.6dB average gain
53% average efficiency
-40°C to +125°C operating temperature range
-10°C to +40°C storage temperature range

Linear polarization
50Ω impedance rating
<0.1g weight
1mm x 0.5mm x 0.5mm dimensions
7mm x 15mm footprint area

Antenova Admotus SMT Ceramic Antennas

Features

Applications

Specifications

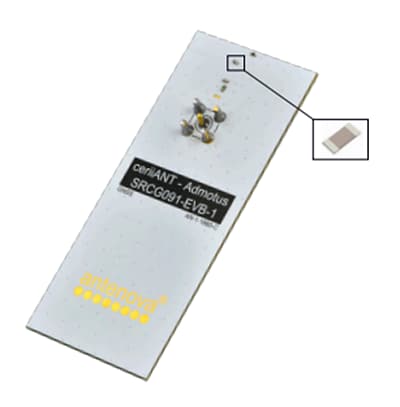

Product Overview

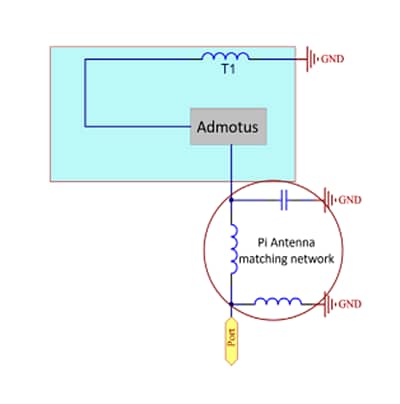

Schematic
