Antenova Abdita SMT Ceramic Antennas

Antenova Abdita SMT Ceramic Antennas operate on multiple ground plane sizes in all 2.4GHz applications, including BLUETOOTH®, Wi-Fi®, and ZigBee®. The antennas feature a wide, omnidirectional connectivity range due to a high 60.5% efficiency rating. Antenova Abdita SMT Ceramic Antennas offer a small clearance area on the PCB with only a 7mm x 7mm footprint area. The antennas are ideal for wearable devices, medical equipment, satellite navigation, portable navigation devices (PND), and wireless sensor network applications.

Features

All 2.4GHz applications
BLUETOOTH, Wi-Fi, ZigBee, ISM
Omnidirectional
High efficiency

De-tuning resistant
Small clearance area
RoHS compliant

Applications

Wearable devices
Fitness trackers
Headsets
Medical equipment with BLUETOOTH/Wi-Fi

Satellite navigation
PNDs
Wireless sensor networks

Specifications

2400MHz to 2500MHz frequency range
2.8dBi peak gain
-1.9dB average gain
60.5% average efficiency
Linear polarization
50Ω impedance

-40°C to +125°C operating temperature range
-10°C to +40°C storage temperature range
<0.1g weight
1mm x 0.5mm x 0.5mm dimensions
7mm x 7mm footprint area

Antenova Abdita SMT Ceramic Antennas

Features

Applications

Specifications

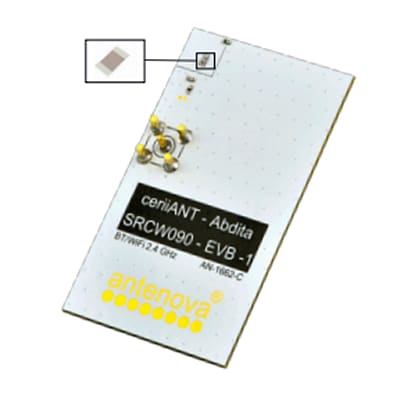

Product Overview

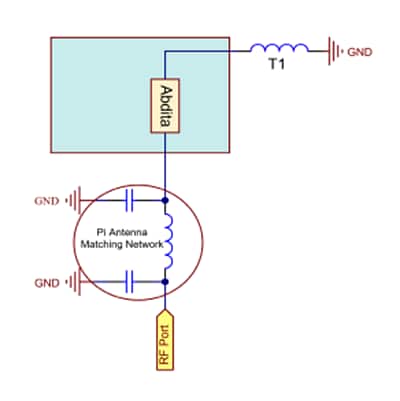

Schematic
